Description
The Anaesthesia Machine Circuit is to transfer the medical air between the patient and machine for anesthesiology, ICU and emergency room.
Directions For Use
Open the package by tearing off from the bottom edge V-shape opening, DO NOT use scissors or cutter to open the package to avoid product damage
Before connecting the product to patient, securely attach all connections by using a twisting action to ensure a leak free and tight fit
Following the machine instruction to test the product, make sure the product is compatible with the machine used and confirm that the product has no leakage and occlusion
Make sure the ports of the product such as gas sampling port, pressure port and temperature port are closed when not connected to the monitoring line
Patient should be monitored constantly whenever the product is in use
Please read the instruction before use
Specification
|
SIZE |
REF NO. |
Length |
Specification |
|
|
Expandable Adult(Tube ID22 mm) |
98.06.119 |
0.5-3m any length customized |
2 Expandable Tubes 2 Straight Connector 1 Y Connector 1 Elbow Connector 1 Luer Cap |
- |
|
98.06.122 |
Breathing Bag |
|||
|
98.06.123 |
Breathing Filter |
|||
|
98.06.124 |
Breathing Bag+Breathing Filter |
|||
|
98.06.125 |
Breathing Bag+Breathing Filter+Anesthesia mask |
|||
|
Expandable Pediatric(Tube ID15 mm) |
98.06.111 |
- |
||
|
98.06.114 |
Breathing Bag |
|||
|
98.06.115 |
Breathing Filter |
|||
|
98.06.116 |
Breathing Bag+Breathing Filter |
|||
|
98.06.117 |
Breathing Bag+Breathing Filter+Anesthesia mask |
|||
|
Expandable Neonate(Tube ID10 mm) |
98.06.135 |
- |
||
|
98.06.138 |
Breathing Bag |
|||
|
98.06.139 |
Breathing Filter |
|||
|
98.06.140 |
Breathing Bag+Breathing Filter |
|||
|
98.06.141 |
Breathing Bag+Breathing Filter+Anesthesia mask |
|||
Product And advantage

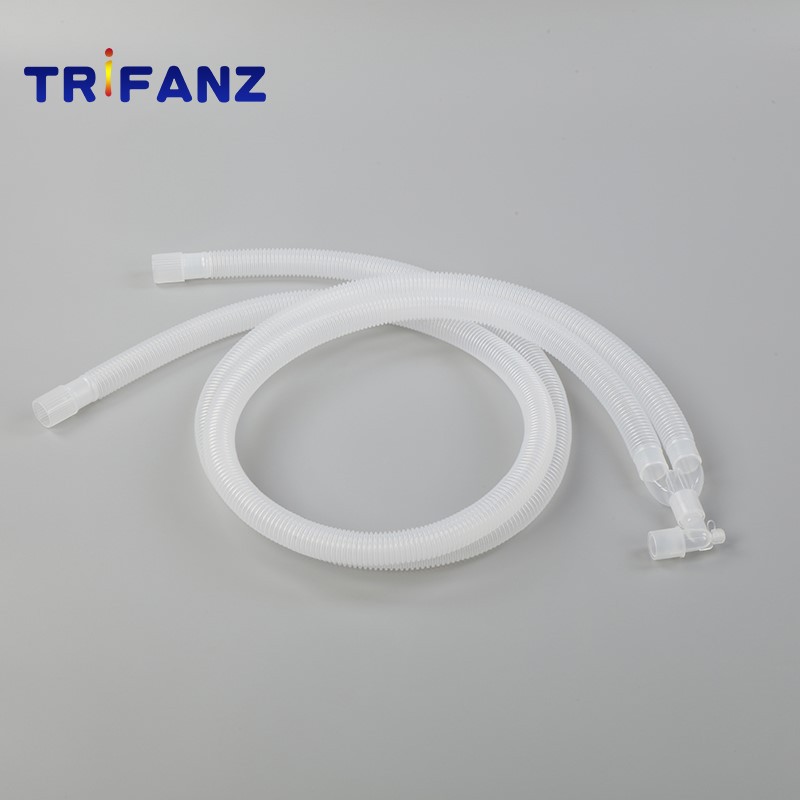

Corrugated anesthesia circuit
√Good elasticity and air tightness
√More flexible, resistant to bending and occlusion
Expandable anesthesia circuit
√Lightweight, save storage space and transportation cost, all expandable circuits are packaged in a collapsed state, and stretch to normal length when into application
√High compression rate, adjustable length
Smoothbore anesthesia circuit
√Smooth inner wall, water is not easy to accumulate, improve safety
√Smoothbore tube could reduce flow resistance
√Unique spiral tube body design to prevent occlusion due to twisting
Optional parts
1. Breathing bag: Laxte/latex free
2. Anesthesia mask:0#-6#
3. Breathing filter: HMEF(heat & moisture exchange filter), BVF(Bacterial virus filter)
4.Catheter mount (expandable, corrugated)
5. Sampling line
6.Straight connector
7. Customized item
