Trifanz manufacture the various heat moisture exchange filter, meet all ISO standards and supply high level clinical protection to different ages patients.
Disposable breathing filter, respiratory filters for single use, mainly for breathing machine and anesthesia machine pipeline filter bacteria, particles and increase the degree of wet gas, can also check in lung function pulmonary function tests with the equipment for use in patients with bacterial pathogens for filtering droplets to protect spirometry equipment, but also preventcross-infection.
Features&Benefit
➢ Designed in light weight,enhancing patients comfortable.
➢ Gas sampling ports available with tethered cap or luer cap.
➢ The shell is made of medical grade ABS or PP or K-resin with high quality and non-toxic.
➢ Adopt imported 3-layer filtering medium with high efficiency ultrasonic sealing process. The filters have compact appearance and reach the international quality standard.
➢ With advantages of good sealing,low breathing flow resistance and small dead space.
➢ Connector: 15mm/22mm.
➢ prevent particles, bacteria and other pathogens in anesthesia and breathing circuit from entering the respiratory system.
Basic information
| Origin: China | Packaging: paper-plastic pouch |
| Color: Green(standard), blue, transparent | Size: neonate, pediatric, adult |

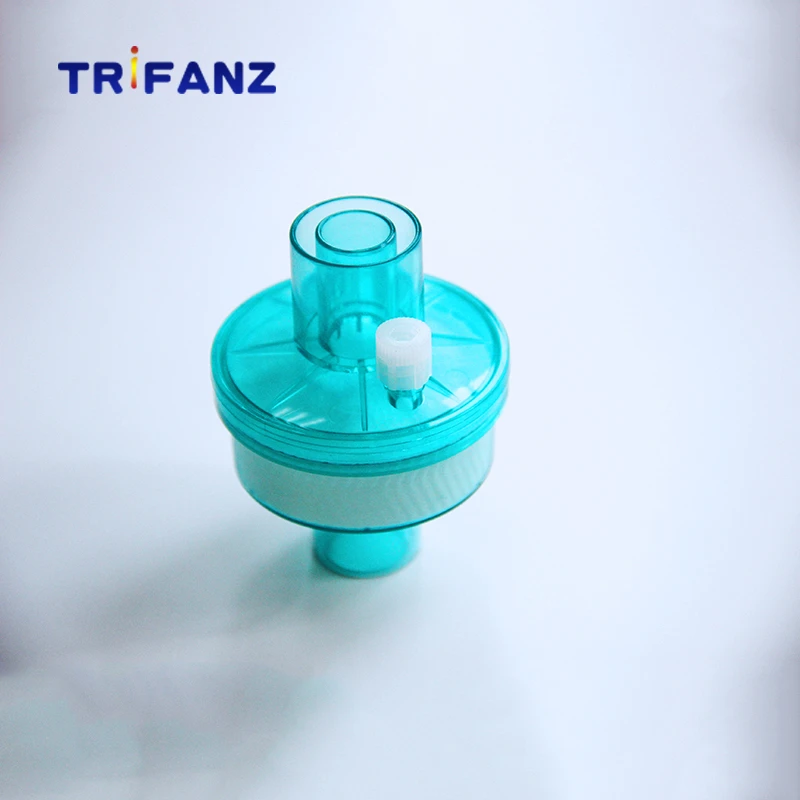

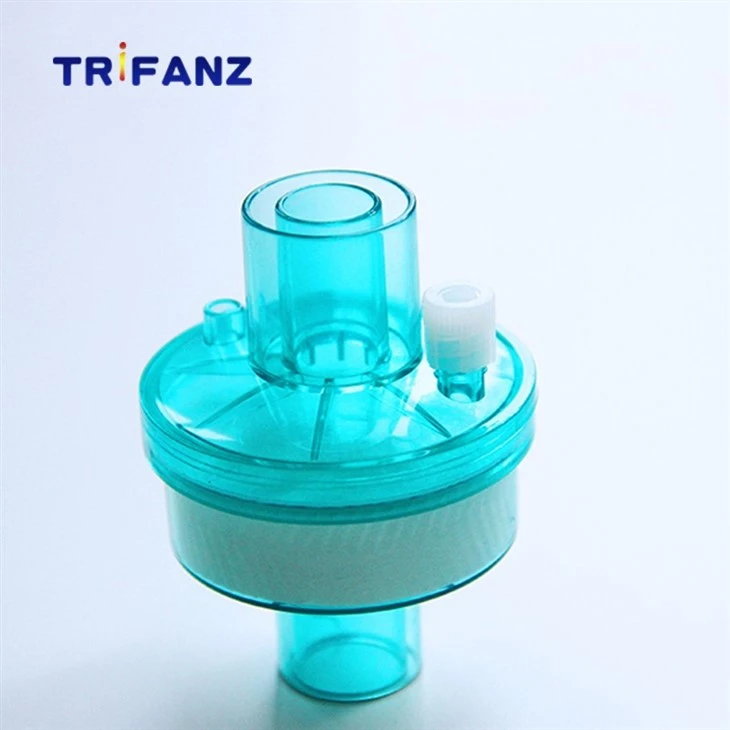

Heat Moisture Exchange Filter(HMEF)
|
HMEF |
|
|
|
|
|
|
REF NO. |
98.05.011 |
98.05.014 | 98.05.031 |
98.05.042 |
|
|
Size |
Adult |
Adult (Elbow) |
Pediatric |
Neonate |
|
|
Shell material |
ABS or PP or K-resin |
ABS or PP or K-resin |
ABS or K-resin |
ABS or K-resin |
|
|
Moisture loss (paper/sponge) |
15mg |
15mg |
12mg |
10mg |
|
|
Moisture output (paper/sponge) |
25mg/@500 VT |
25mg/@500VT |
24mg/@500VT |
22mg/@500VT |
|
|
BFE |
99.99% |
99.99% |
99.99% |
99.99% |
|
|
VFE |
99.99% |
99.99% |
99.99% |
99.99% |
|
|
Airflow resistance (DRY) |
120 Pa |
120 Pa |
120 Pa |
120 Pa |
|
|
Airflow resistance (WET) |
150 Pa |
150 Pa |
150 Pa |
150 Pa |
|
|
Filtering type |
Electrostatic |
Electrostatic |
Electrostatic |
Electrostatic |
|
|
Tidal volume |
200-1500ml |
200-1500ml |
150-300ml |
70-150ml |
|
|
Dead space |
18 ml |
20 ml |
12ml |
10 ml |
|
|
Weight |
29 g |
31 g |
8g |
6 g |
|
|
Connector |
22F-22M/15F |
22F-22M/15F |
22F-22M/15F |
15F-15M/8M |
|
|
Sampling port |
YES |
YES |
YES |
YES |
|
|
Package |
200PCS/CTN |
200PCS/CTN |
250PCS/CTN |
250PCS/CTN |
|

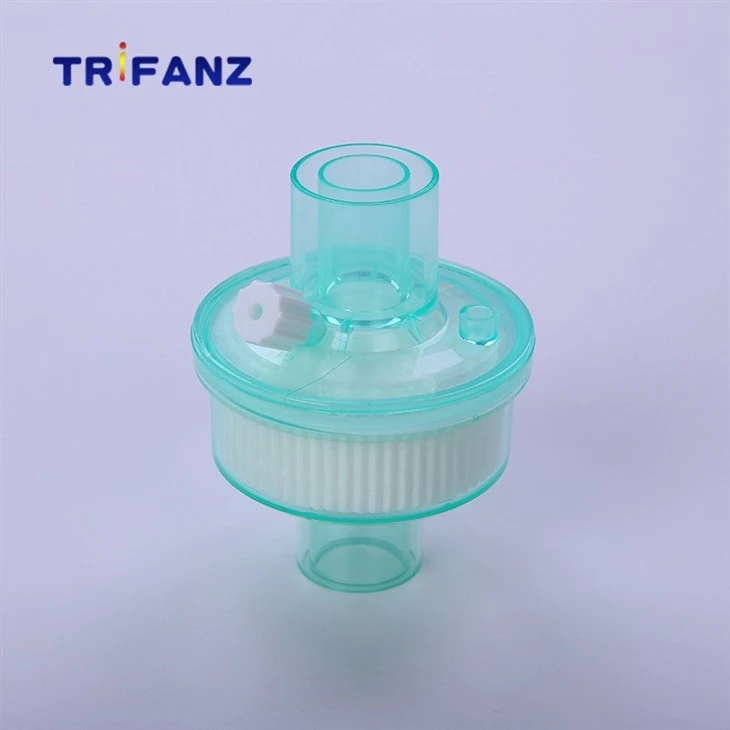

Straight connector type

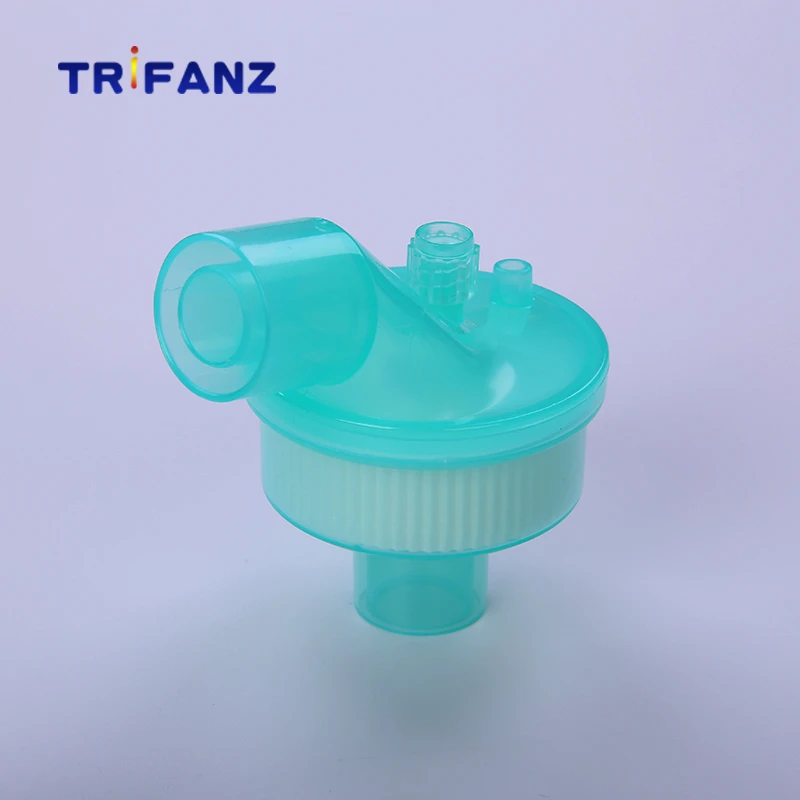

Elbow connector type

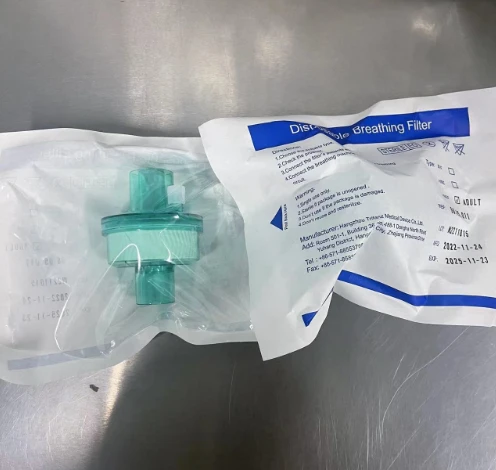

paper-plastic pouch, 200pcs/carton, 52*48*35cm
