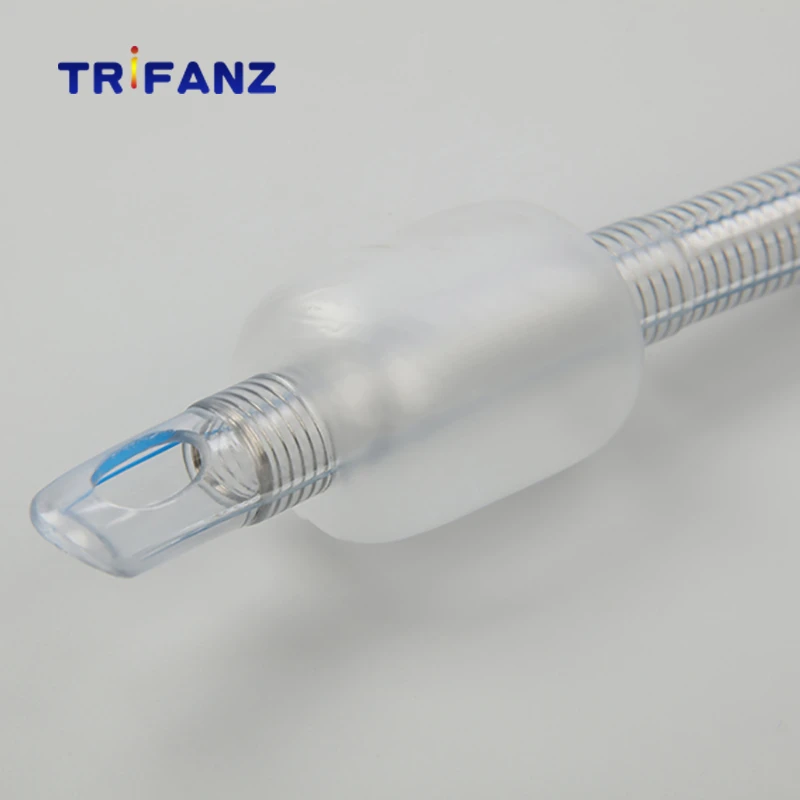

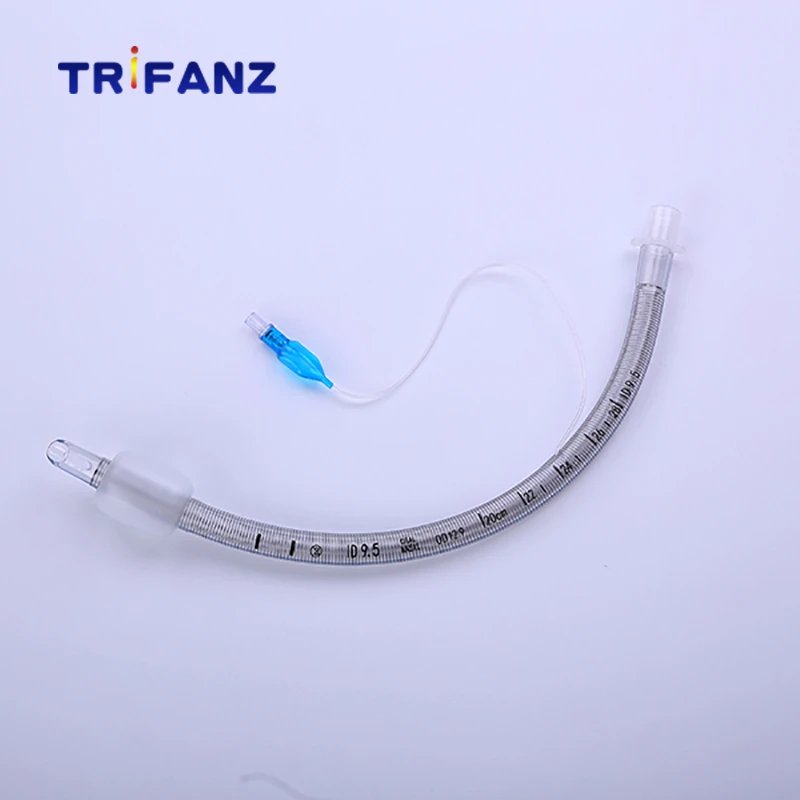

Armored ETT

The armored ETT is made with reinforced materials, such as embedded steel spiral wires, to prevent kinking and maintain flexibility. It also features an ultra-slippery coating to reduce friction and improve patient comfort This type of intubation is often used in critical care situations, such as during anesthesia or resuscitation, to ensure proper ventilation and oxygenation of the patient.

Basic Information

1. Made of non-toxic medical grade PVC	5. With a Murphy eye	9. For single Use
2. Transparent, clear, smooth, soft, flexible	6. With a standard 15 mm connector	10. Sterile
3. With a bevelled tip	7. With the 'Magill curve'	11. With a radio-opaque line which extends all the way to the tip
4. The bevel is left-facing	8. ID, OD and length printed on the tube	12. With a metal wire coil embedded in the wall of the tube shaft

Product Advantages

1.The bevelled tip facilitates smoother passage through the vocal cords compared to a tube with a cross-cut distal opening, making intubation easier.

2.The left-facing bevel allows for a clearer view of the endotracheal tube (ETT) tip as it enters the field of view from right to left/midline and passes through the vocal cords, enhancing procedural visibility.

3.The Murphy eye serves as an alternative pathway for gas flow, ensuring reliable ventilation.

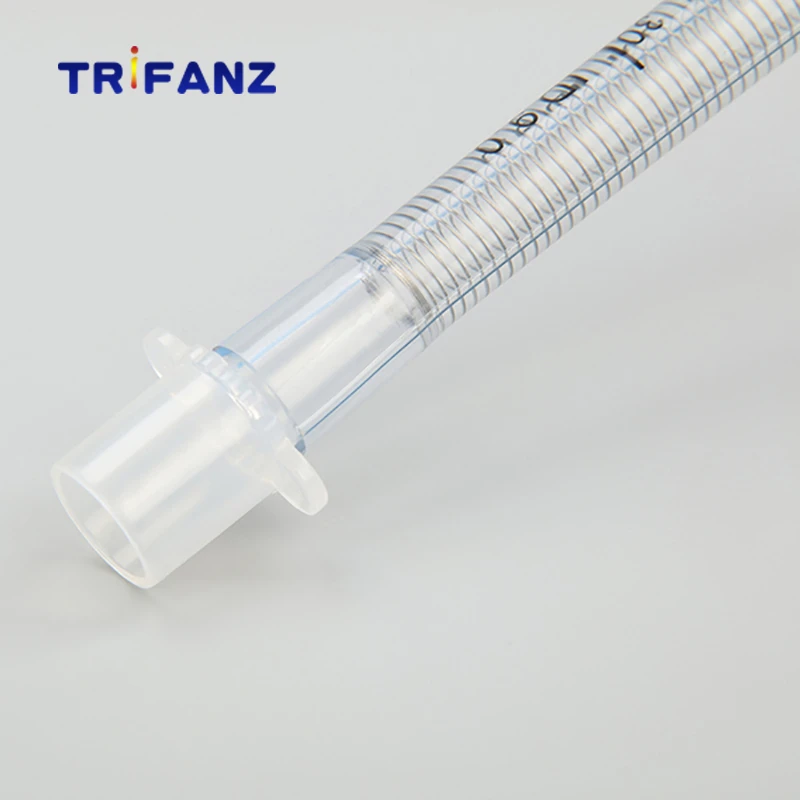

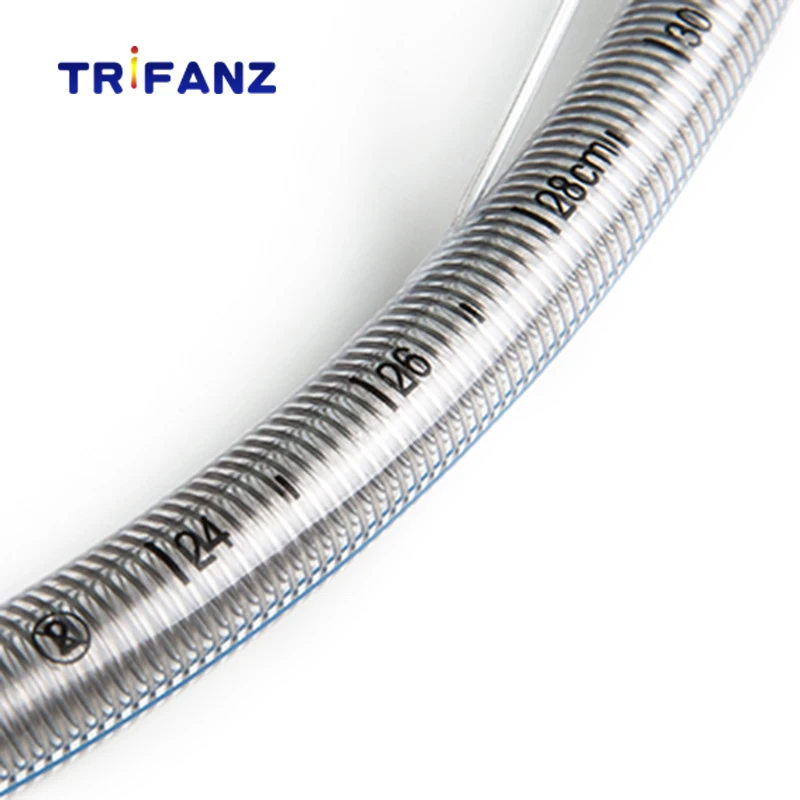

4.The standard 15mm connector is compatible with a wide range of breathing systems and anesthetic circuits, providing versatility in clinical use.

5.The radio-opaque line aids in confirming the correct tube position on a chest X-ray, enhancing patient safety.

6.The Magill curve design conforms to the anatomy of the upper airway, making tube insertion more straightforward and comfortable for the patient.

7.Specifically designed for smaller airways, the ETT ensures a proper fit and function in pediatric or small adult patients.

8.With superior flexibility compared to standard ET tubes, the product is less prone to kinking and occlusion when bent, representing a significant advantage in clinical practice.

9.The armored ETT is advantageous in fiberoptic intubation via either the oral or nasal route due to its exceptional flexibility, which facilitates easier railroading off the scope.

10.The armored ETT can be utilized in patients positioned prone, offering versatility in managing difficult airway scenarios.

ID.SIZE	REF NO.	ID.SIZE	REF NO.	ID.SIZE	REF NO.
2.0#	98.04.648	5.0#	98.04.666	8.0#	98.04.680
2.5#	98.04.650	5.5#	98.04.670	8.5#	98.04.682
3.0#	98.04.652	6.0#	98.04.674	9.0#	98.04.683
3.5#	98.04.654	6.5#	98.04.678	9.5#	98.04.684
4.0#	98.04.658	7.0#	98.04.682	10.0#	98.04.685
4.5#	98.04.662	7.5#	98.04.686	-	-
