The Nasal RAE endotracheal tube is commonly used for nasal intubation, offering advantages such as improved anatomical conformity, reduced risk of trauma during insertion, and enhanced visualization during the intubation process. The Nasal ETT Tube is particularly beneficial in situations where oral intubation may be challenging or contraindicated.

Basic Information

1. Made of non-toxic medical grade PVC
2. Transparent, clear and smooth
3. With a high volume low pressure cuff
4. With a bevelled tip
6. With a Murphy eye
7. With a pilot balloon
8. With a spring-loaded valve with a Luer lock connector

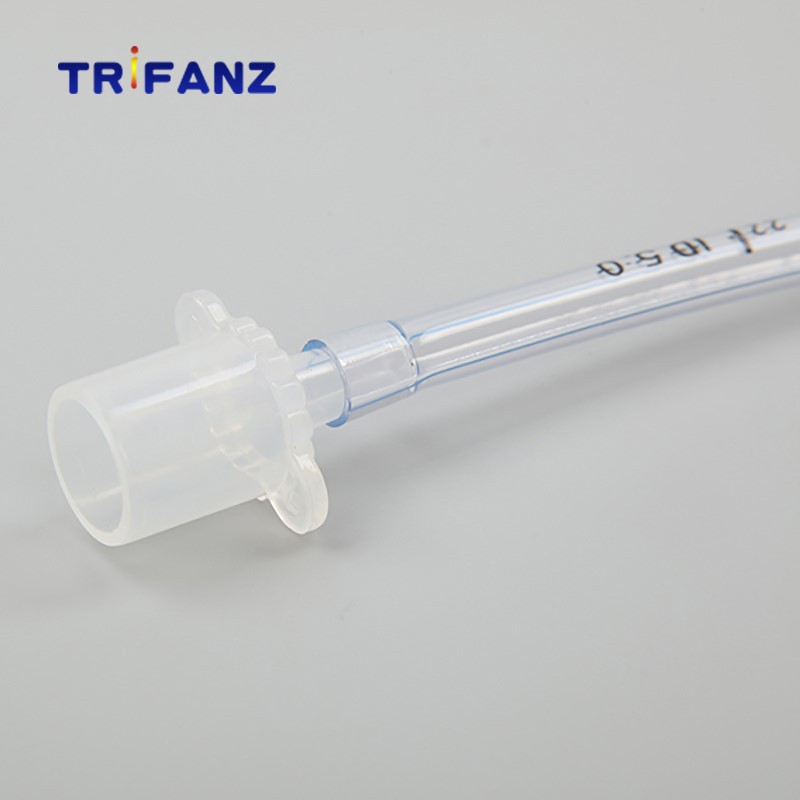

9. With a standard 15 mm connector
10. With a radio-opaque line which extends all the way to the tip
11. ID, OD and length printed on the tube
12. For single Use
13. Sterile, individual paper-plastic pouch
14. Preformed for nasal use
15. Anatomically shaped
16. Cuffed or uncuffed

Nasal RAE Tracheal Tube Cuffed

ID.SIZE	REF NO.	ID.SIZE	REF NO.	ID.SIZE	REF NO.
2.0#	98.04.246	5.0#	98.04.262	8.0#	98.04.286
2.5#	98.04.248	5.5#	98.04.266	8.5#	98.04.290
3.0#	98.04.250	6.0#	98.04.270	9.0#	98.04.294
3.5#	98.04.252	6.5#	98.04.274	9.5#	98.04.296
4.0#	98.04.254	7.0#	98.04.278	10.0#	98.04.298
4.5#	98.04.258	7.5#	98.04.282	-	-

Nasal RAE Tracheal Tube Uncuffed

ID.SIZE	REF NO.	ID.SIZE	REF NO.	ID.SIZE	REF NO.
2.0#	98.04.202	5.0#	98.04.216	8.0#	98.04.240
2.5#	98.04.204	5.5#	98.04.220	8.5#	98.04.242
3.0#	98.04.206	6.0#	98.04.224	9.0#	98.04.243
3.5#	98.04.208	6.5#	98.04.228	9.5#	98.04.244
4.0#	98.04.210	7.0#	98.04.232	10.0#	98.04.245
4.5#	98.04.212	7.5#	98.04.236	-	-

Details

FAQ

Q: What is the use of north facing RAE tube ETT?

A: The north facing RAE can be used for either oral or nasal intubation, mainly during maxillofacial or dental surgery where the circuit is required to go over the head out of the surgeon's field. Bronchial intubation is more common than with standard ETTs.

Q: What is the difference between ETT and RAE?

A: The distinguishing feature of RAE tubes in comparison to 'standard' ET tubes is their different pre-formed bend. The pre-forming during manufacturing reduces the risk of kinking and obstruction which could occur if a 'standard' ET tube was bent into the same shape as a RAE tube.
