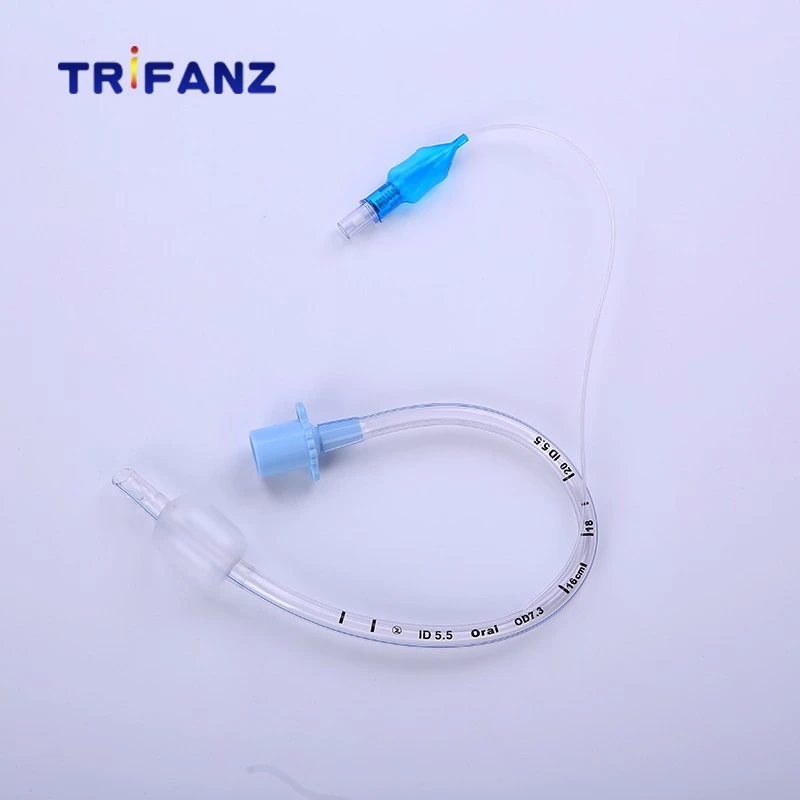

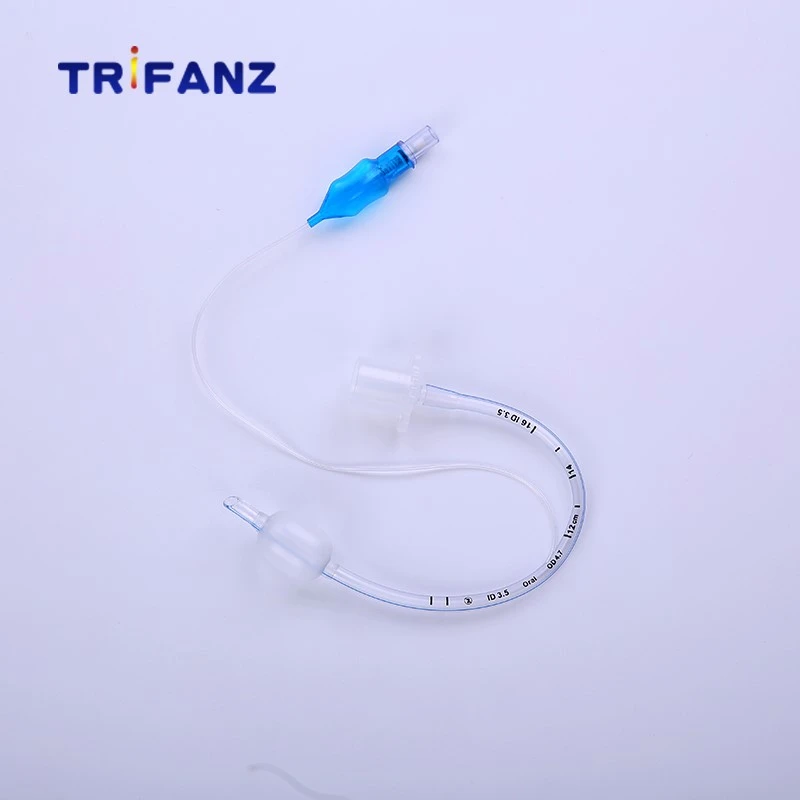

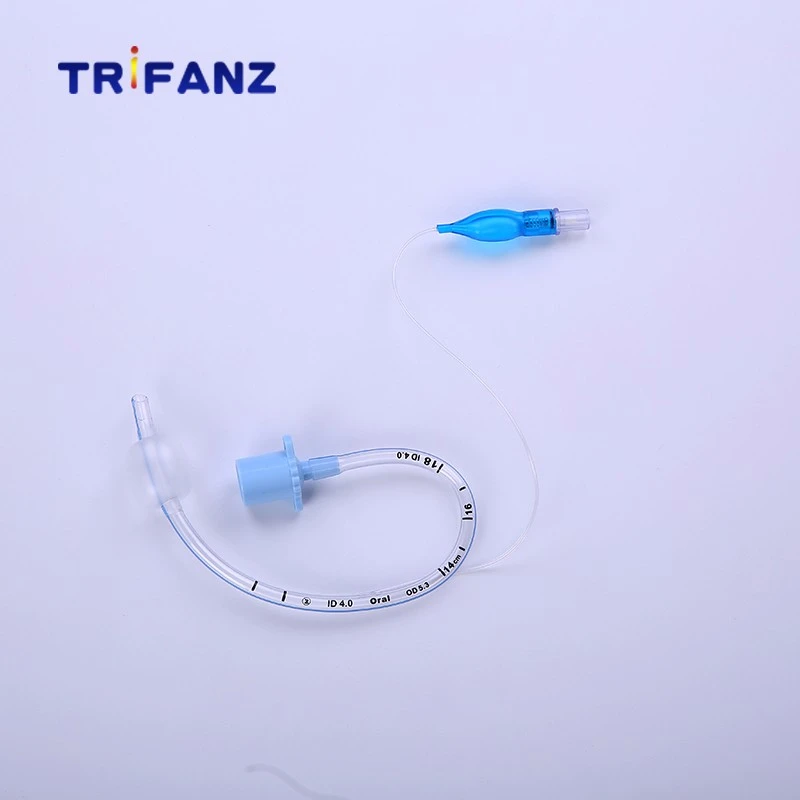

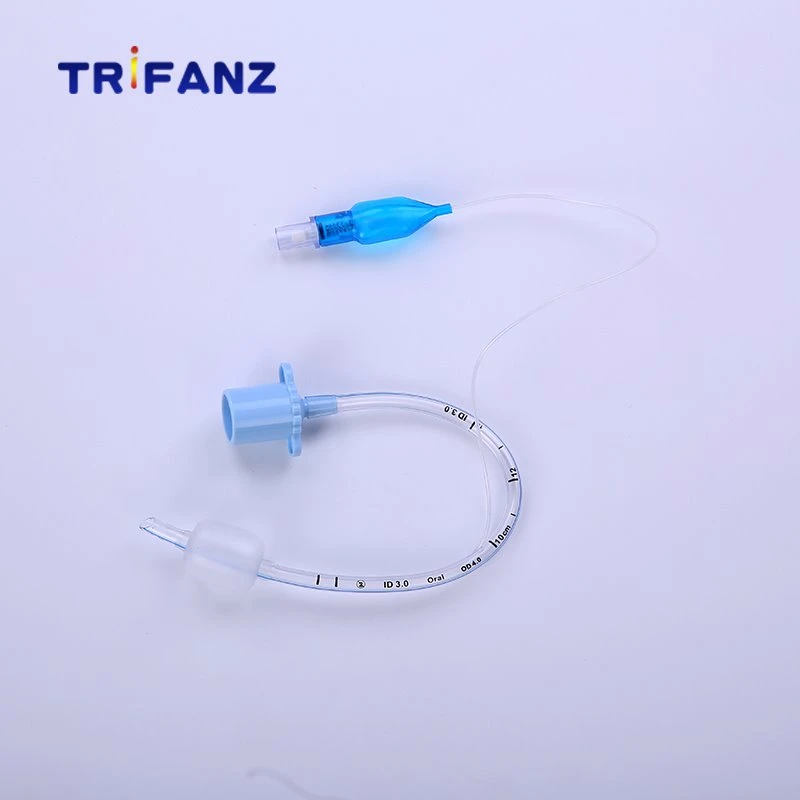

Oral preformed endotracheal tubes are also described as south facing RAE tube, the tube connector facing towards the patient's feet after placement.

Features

Preformed Shape:

The south facing RAE tube is preformed to a specific curvature, reducing the risk of kinking or bending during insertion.

This preformed shape aids in smooth navigation through the oral and tracheal anatomy.

Cuffed Design:

The tube incorporates a high volume low pressure cuff, which is inflated once the tube is positioned in the trachea.

The cuff creates a seal between the tube and the tracheal wall, preventing air leakage and ensuring efficient ventilation.

Size Options:

The south facing RAE tube is available in various sizes, ranging from ID 2.0mm to 10.0mm, accommodating patients of different ages and sizes.

Material:

Typically made from medical-grade PVC, latex free.

Murphy Eye:

Incorporated as an additional safety feature, it ensures safety in the event of catheter misplacement.

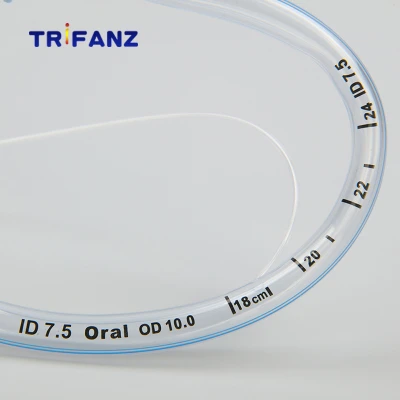

Tip-to-Tip X-ray Line:

Allows for safe positioning control during insertion and monitoring.

Connector:

15mm standard connector

Packaging:

With box: 10pcs/box, 10box/carton, 44*37*39cm

Without box: 200pcs/carton, 44*37*39cm

Size

ID.SIZE	REF NO.	ID.SIZE	REF NO.	ID.SIZE	REF NO.
2.0#	98.04.146	5.0#	98.04.162	8.0#	98.04.186
2.5#	98.04.148	5.5#	98.04.166	8.5#	98.04.190
3.0#	98.04.150	6.0#	98.04.170	9.0#	98.04.194
3.5#	98.04.152	6.5#	98.04.174	9.5#	98.04.196
4.0#	98.04.154	7.0#	98.04.178	10.0#	98.04.198
4.5#	98.04.158	7.5#	98.04.182	-	-

Details

FAQ

Q: What is the use of South Pole endotracheal tube?

A: A preformed South Pole oral Ring–Adair–Elwyn (RAE) tracheal tubes is used in orofacial surgery to provide an unobstructed view of the surgical field. The distinguishing feature of RAE tubes in comparison to standard tracheal tubes is their pre-formed bend.

Q: I'm looking for parts, such as plastic tubes, connectors. Can you provide these for me?

A: Yes, we can provide parts or raw materials.

Q: What is the price of your products?

A: The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
