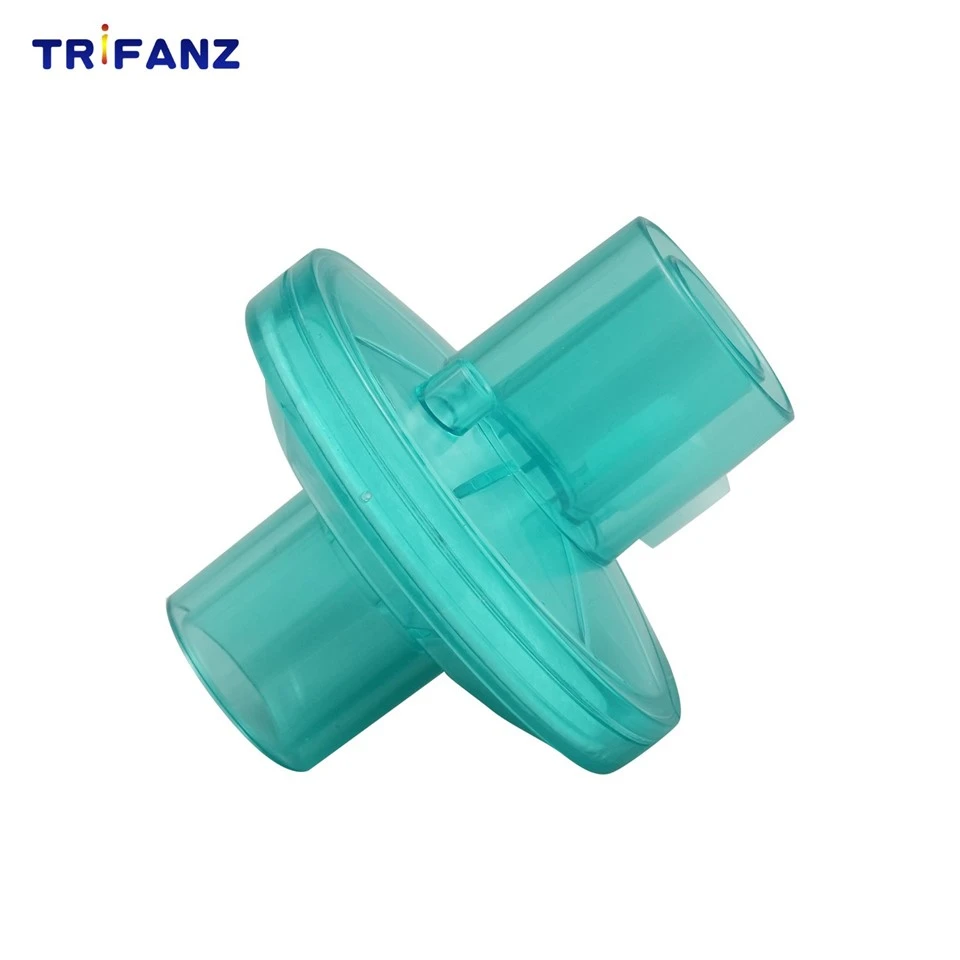

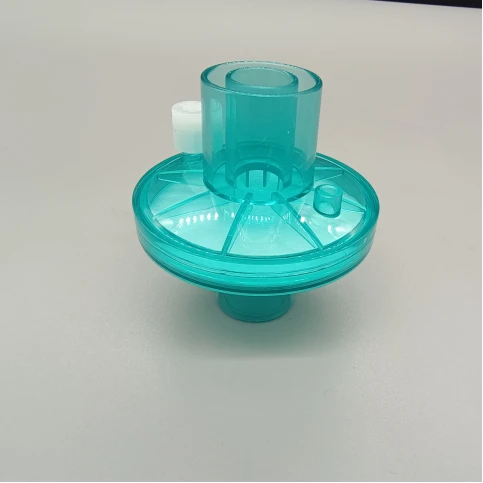

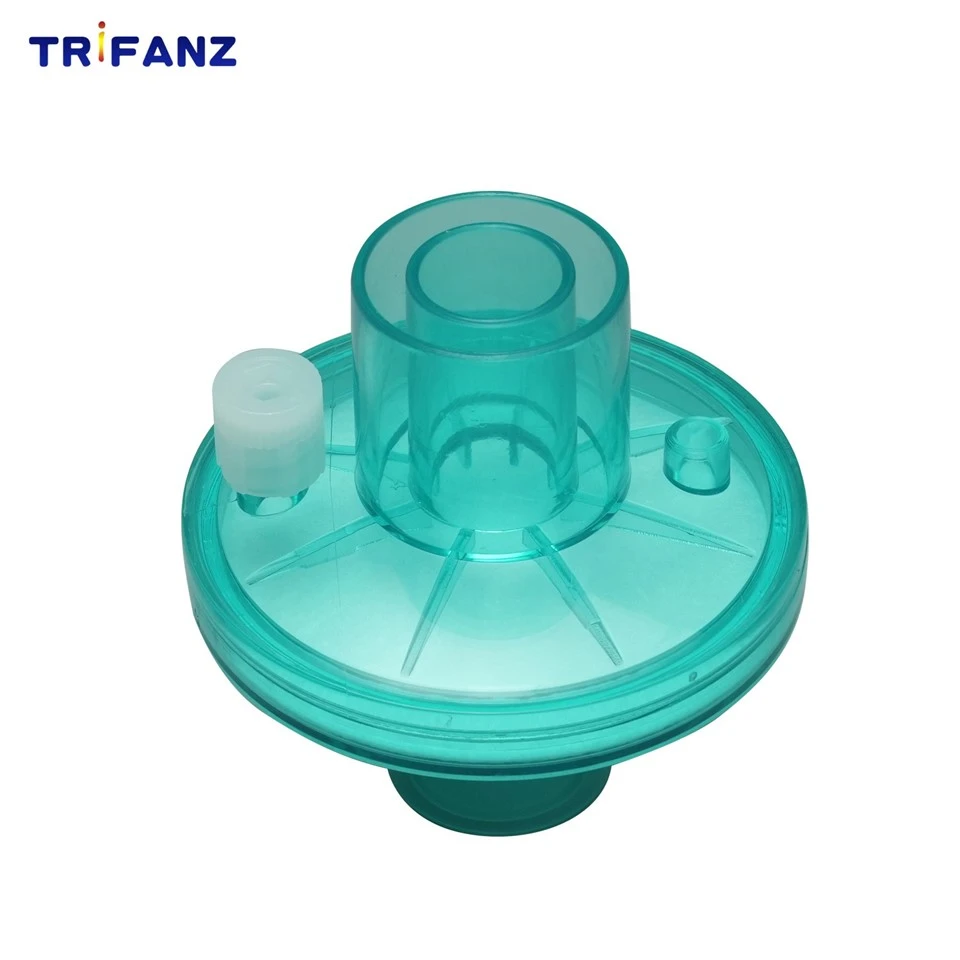

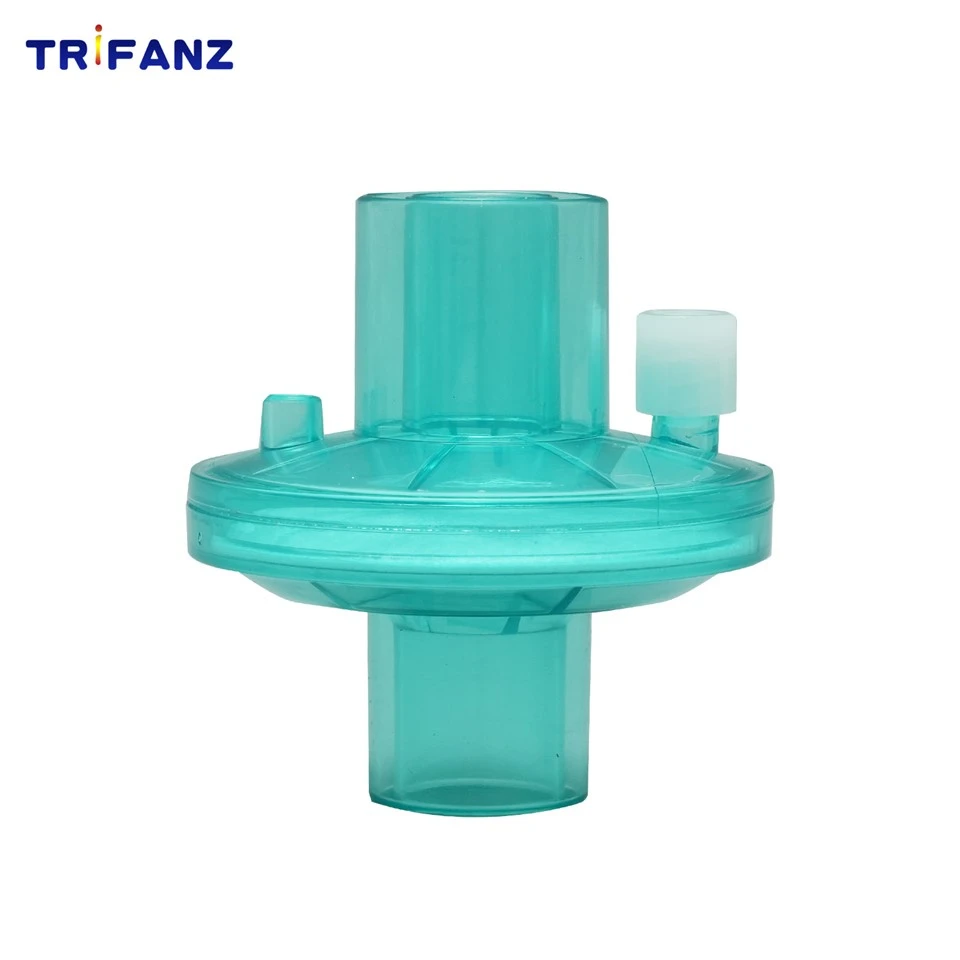

BV Filtter is an important piece of equipment to prevent the spread of infectious bacteria while performing resuscitations or oxygen therapy. This item will be attached to anesthesia face mask & anesthesia breathing circuit and filters out any transmitting bacteria during procedures. This item is manufactured by Galemed and supplied by Mega Medical in Australia. This item is used to ensure air quality and stop the spread of harmful bacteria to both the patient and operator during procedures.
Green BV filter
White BV filter
Specification
|
Description |
BVF |
|
Shell material |
ABS or PP or K-resin |
|
Pressure Drop@30LPM |
60Pa |
|
BFE |
99.99% |
|
VFE |
99.99% |
|
Filtering type |
Electrostatic |
|
Tidal volume |
150-300ml |
|
Dead space |
30ml |
|
Weight |
23g |
|
Connector |
22F/15M - 22M/15F |
|
Sampling port |
YES |
|
Package |
200PCS/CTN |
Instruction for use
1. Open the package by tearing off from the bottom edge V-shape opening, DO NOT use scissors or cutter to open the package to avoid product damage.
2. Securely connect the product to other components or machine by using a twisting action to ensure a leak free and tight fit.
3. Following the machine instruction to test the product, confirm that the product has no leakage and occlusion.
4. Patient should be monitored constantly whenever the product is in use.
5. The maximum recommended time of use for the product is 24 hours or earlier if it becomes soiled or otherwise unfit for its intended use.
6. Before connecting the product to patient, securely attach all connections by using a twisting action to ensure a leak free and tight fit
7. Patient should be monitored constantly whenever the product is in use
8. Please read the instruction before use
