Name: HME Filter In Ventilator - China HME Filter In Ventilator Manufacturers Suppliers Factory - Trifanz Medical Device
Brand: Trifanz
SKU: 250068586

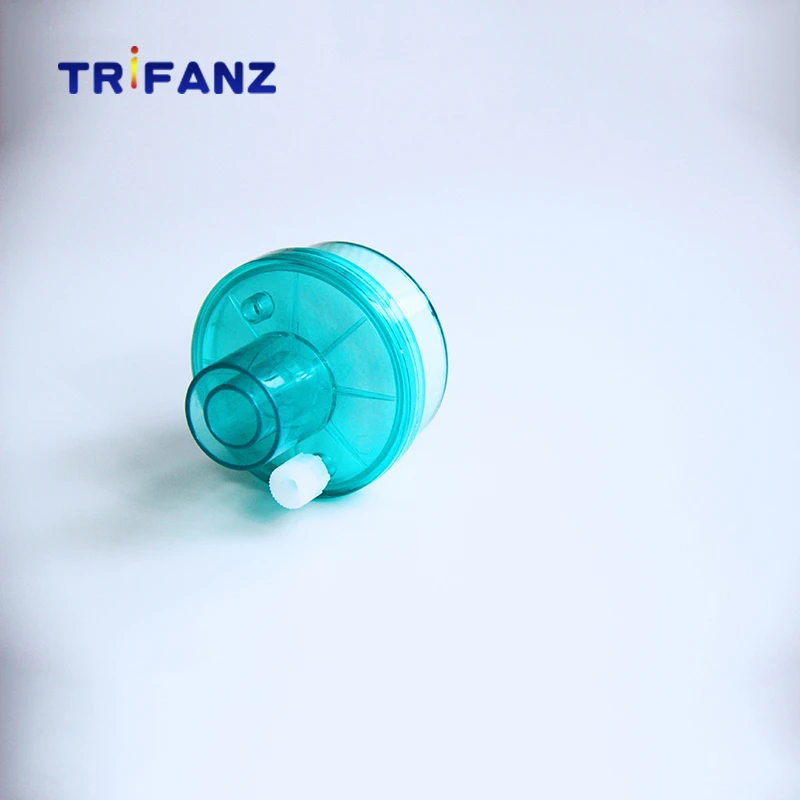

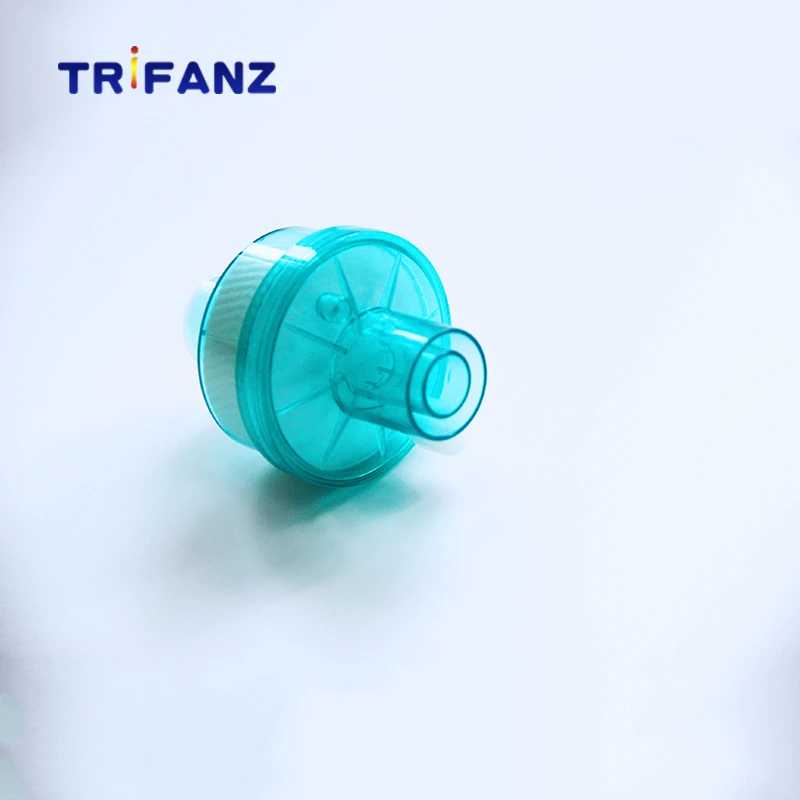

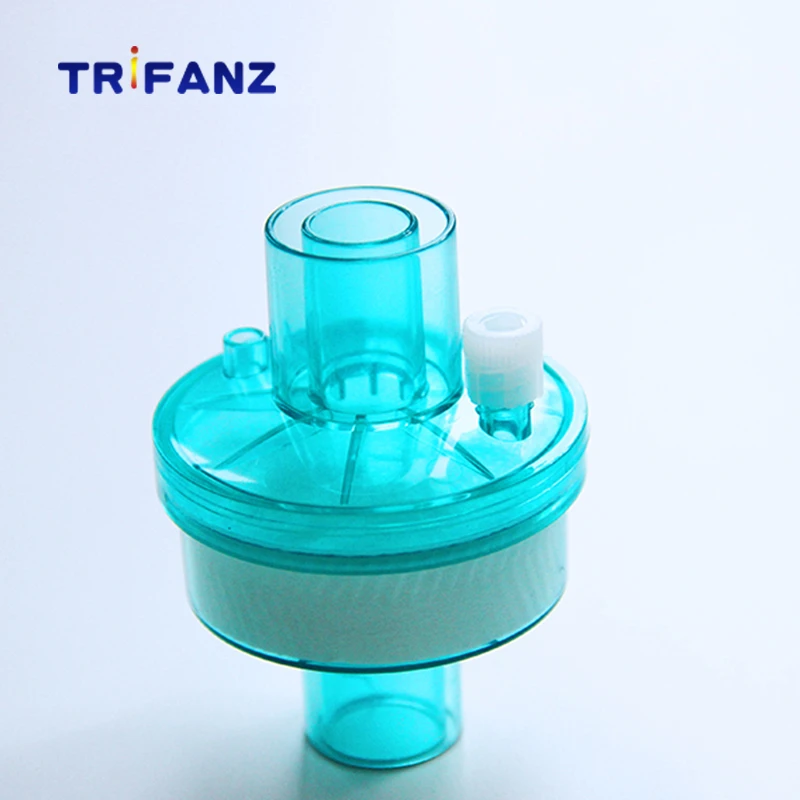

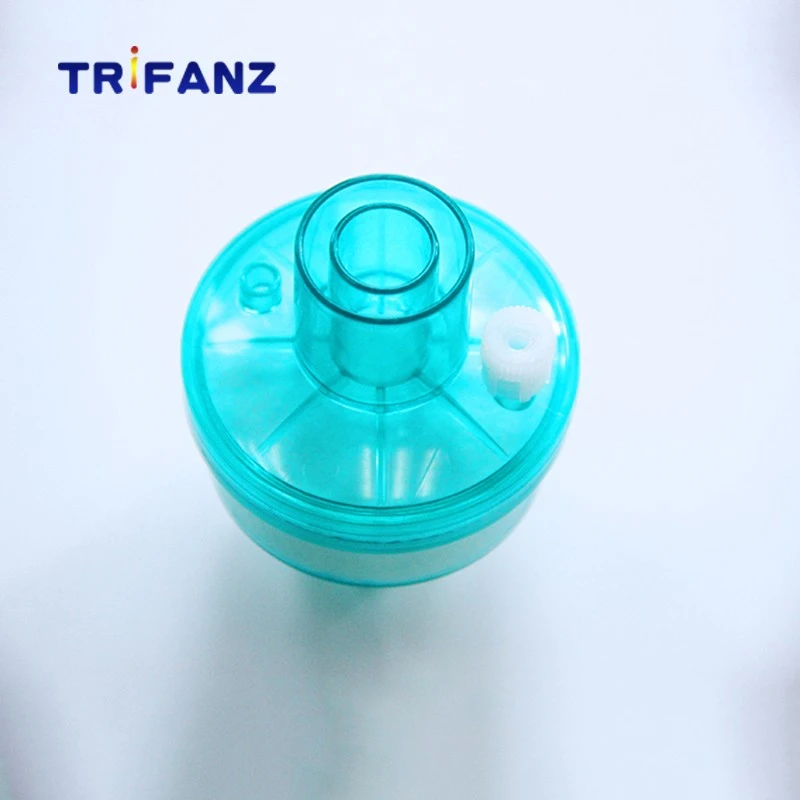

HME Filter In Ventilator

Item: HME Filter In Ventilator
Brand: Trifanz
Type: Straight, Elbow
Size: Adult, Pediatric, Neonate
Material: ABS, PP
Packaging: individual paper-plastic pouch
Sterilization: EO
Sample: available
Certificate: FDA, ISO, CE, FSC
Application: are used to protect patients from cross infection and to warm and humidify inspired gases

Description

HME Filter In Ventilator, also known as artificial nose, is a key component designed for use in ventilator systems. It is mainly made of high-efficiency filter material that can retain heat and moisture in the patient's exhaled gas and release it back into the inhaled gas during the next inhalation. This design helps maintain the temperature and humidity balance in the patient's respiratory tract and reduce discomfort and complications caused by mechanical ventilation.

Function

Passive humidification: Unlike active heated humidifiers, HME filters humidify passively, that is, using the heat and moisture exhaled by the patient to humidify the inhaled gas without the need for additional energy.
Temperature regulation: By retaining the heat in the exhaled gas, the HME Filter In Ventilator helps maintain the temperature of the inhaled gas close to body temperature and reduces the irritation of the airway mucosa due to low temperature.
Humidity maintenance: While humidifying, the HME filter can also keep the humidity of the inhaled gas within an appropriate range, which helps dilute and discharge sputum and reduce the risk of airway obstruction.
Bacterial filtration: HME filters also have efficient bacterial filtration functions, which can prevent microorganisms in the air from entering the patient's lungs and reduce the risk of infection.

Size

HMEF
REF NO.	98.05.011	98.05.014	98.05.031	98.05.042
Size	Adult	Adult(Elbow)	Pediatric	Neonate
Shell material	ABS or PP or K-resin	ABS or PP or K-resin	ABS or K-resin	ABS or K-resin
Moisture loss(paper/sponge)	15mg	15mg	12mg	10mg
Moisture output(paper/sponge)	25mg/@500 VT	25mg/@500VT	24mg/@500VT	22mg/@500VT
BFE	99.99%	99.99%	99.99%	99.99%
VFE	99.99%	99.99%	99.99%	99.99%
Airflow resistance(DRY)	120 Pa	120 Pa	120 Pa	120 Pa
Airflow resistance(WET)	150 Pa	150 Pa	150 Pa	150 Pa
Filtering type	Electrostatic	Electrostatic	Electrostatic	Electrostatic
Tidal volume	200-1500ml	200-1500ml	150-300ml	70-150ml
Dead space	18 ml	20 ml	12ml	10 ml
Weight	29 g	31 g	8g	6 g
Connector	22F-22M/15F	22F-22M/15F	22F-22M/15F	15F-15M/8M
Sampling port	YES	YES	YES	YES
Package	200PCS/CTN	200PCS/CTN	250PCS/CTN	250PCS/CTN

Detail Picture

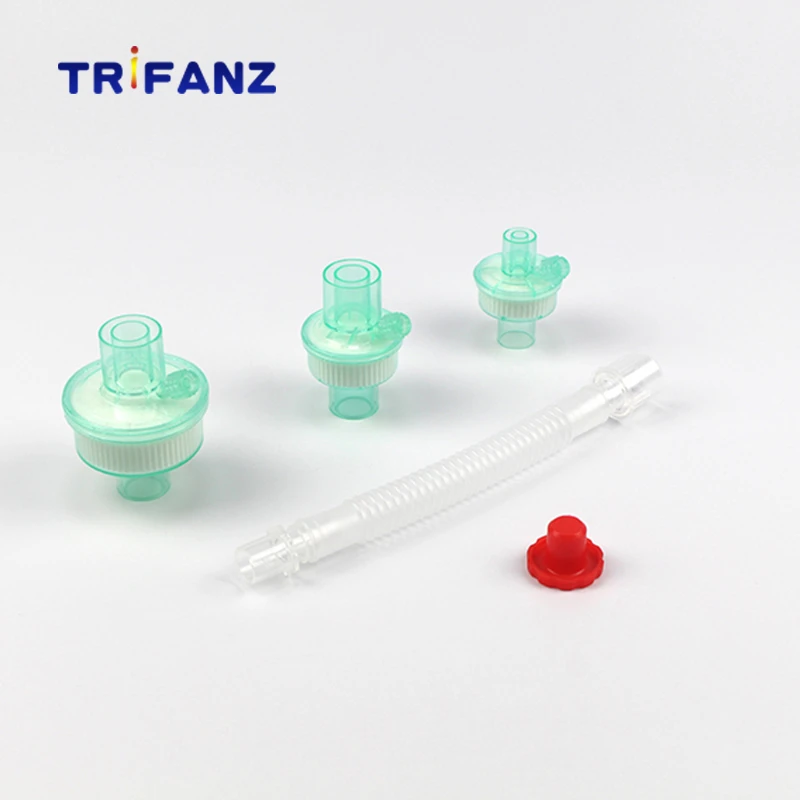

Size: Adult, pediatric, neonate (catheter mount and cap is optional)

FAQ

Q: How do you do to control the quality of your products?

A: We believe that quality is the key to win credibility. Our QMS is strictly controlled according to ISO 13485 standards.

Q: What are your payment terms?

A: 100% full payment is required for order that is less than value 5,000 $.
50% advance payment and balance before shipment is required for order that values 5,000 $ at least. The balance should be paid before delivery
