Double Lumen Endotracheal Tube

Double Lumen Endotracheal Tube
2
3
4

Double Lumen Endotracheal Tube

A double lumen endotracheal tube (DLT) is an endotracheal tube designed to isolate the lungs anatomically and physiologically. Double-lumen tubes (DLTs) are the most commonly used tubes to provide independent ventilation for each lung. Trifanz offer both left type and right type of double lumen endotracheal tube.

Product Introduction

Double lumen endotracheal tube can be used with anesthesia ventilator or ventilator for establishing artificial airway in clinical chest operation or critical patients with single lung and simultaneous or non-simultaneous bronchial intubation in both lungs.

Main Components

Double lumen endobronchial tube (left type & right type), Y connector, 2 pcs suction catheter. The product should be sterile.

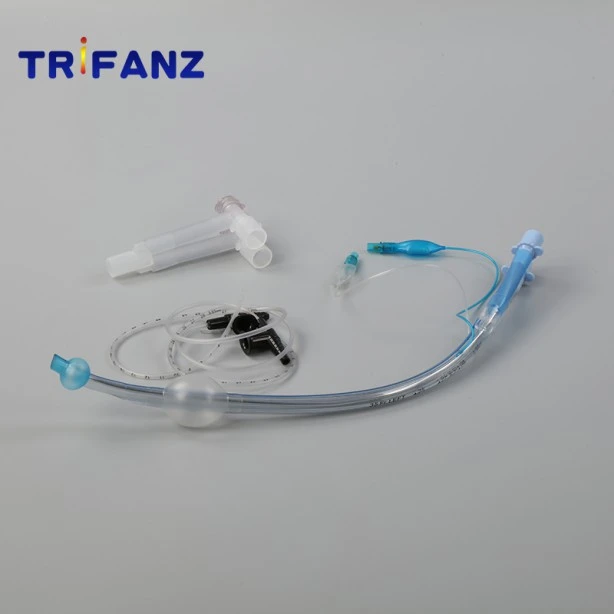

double lumen bronchial tube1

Basic information

Material: PVC and silicone both material are available	Type: Left type & Right type	Size: 28Fr, 32Fr, 35Fr, 37Fr, 39Fr, 41Fr
Packaging: individual paper- plastic pouch and mater carton Carton size: 524835cm, 50 pcs/carton	Sample: Available	OEM: Available
Brand: OEM	Sterilization: EO sterilization	Certificate: ISO13485, FSC, FDA
Application: One lung ventilation, to block off the right or left main bronchus of the lungs in order to be able to achieve a controlled one lung ventilation

Features

Made from PVC in medical grade.
Equipped with switch connector and two low-friction suction catheters.
Available with two types, left-side and right-side.
The cuffs, two lumens and pilot balloons are imprinted with Tracheal (clear) or Bronchial (blue) for easy identification.
Smooth inner lumens can make the bronchoscopes easier to go through.
Pre-loaded stylet can help tube maintain the shape for easier intubation.
DEHP free.

Specification

ID SIZE	REF NO.	Material	ID SIZE	REF NO.	Material
28Fr Left	98.08.005	PVC	28Fr Right	98.08.025	PVC
32Fr Left	98.08.007	PVC	32Fr Right	98.08.027	PVC
35Fr Left	98.08.009	PVC	35Fr Right	98.08.029	PVC
37Fr Left	98.08.011	PVC	37Fr Right	98.08.031	PVC
39Fr Left	98.08.013	PVC	39Fr Right	98.08.033	PVC
41Fr Left	98.08.015	PVC	41Fr Right	98.08.035	PVC

Left type & right type double lumen endobronchial tube

endobronchial catheter1

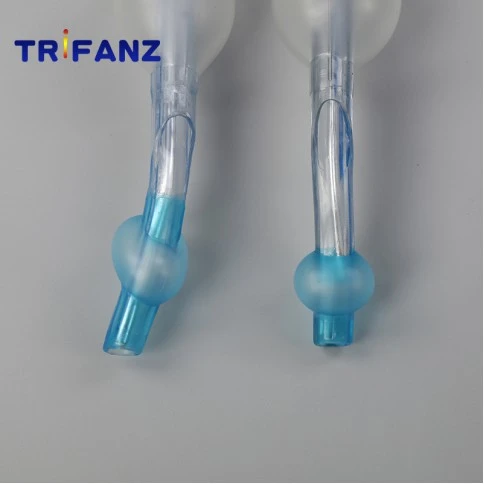

Cuff of endobronchial tube1

Cuff details

RFQ

Q: Should double-lumen tube be left or right?

A: A left DLT is most commonly used as it avoids inadvertent obstruction of the right upper lobe (RUL) bronchus that can occur with a right DLT. Right-sided tubes may be required for left pneumonectomy, left lung transplant, or when there are anatomical distortions of the left main bronchus.

Q: What is the difference between a double-lumen tube and a bronchial blocker?

A: The use of a DLT results in a low risk of movement after positioning, and allows for continuous positive airway ventilation to the deflated lung. A bronchial blocker (BB), a device which can be inserted down a tracheal tube after tracheal intubation, can also meet the needs of lung isolation.
