RAE Tracheal Tube

RAE Tracheal Tube

Pre-shaped anatomical design with oral / nasal optional, flexible and biocompatible material for comfortable placement.
High-volume low-pressure cuff reduces airway trauma; X-ray opaque line for accurate positioning.
Pre-bent structure keeps breathing circuit away from surgical field, ideal for maxillofacial and dental surgery.
Disposable, EO sterilized, individually packaged to ensure hygiene and safety.

Product Introduction

Products Description

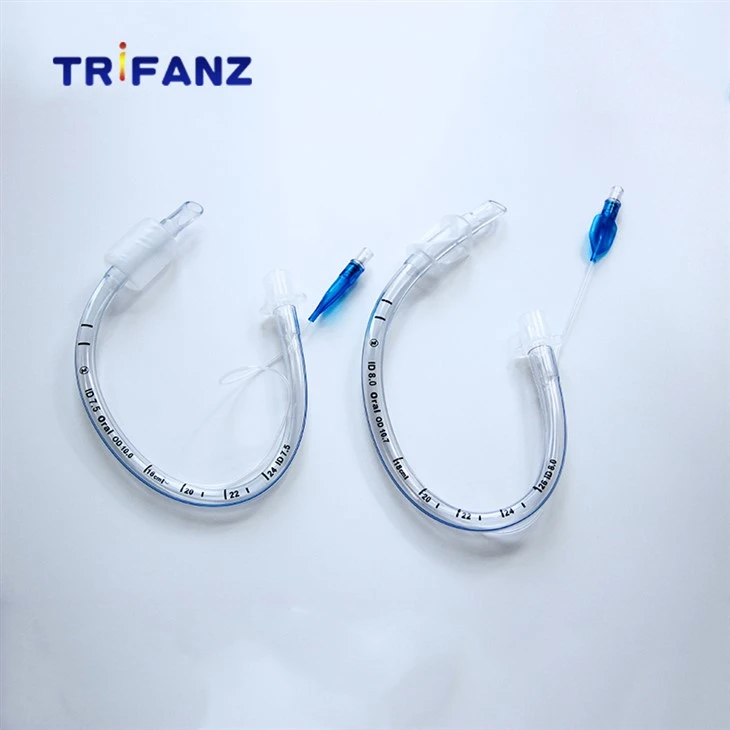

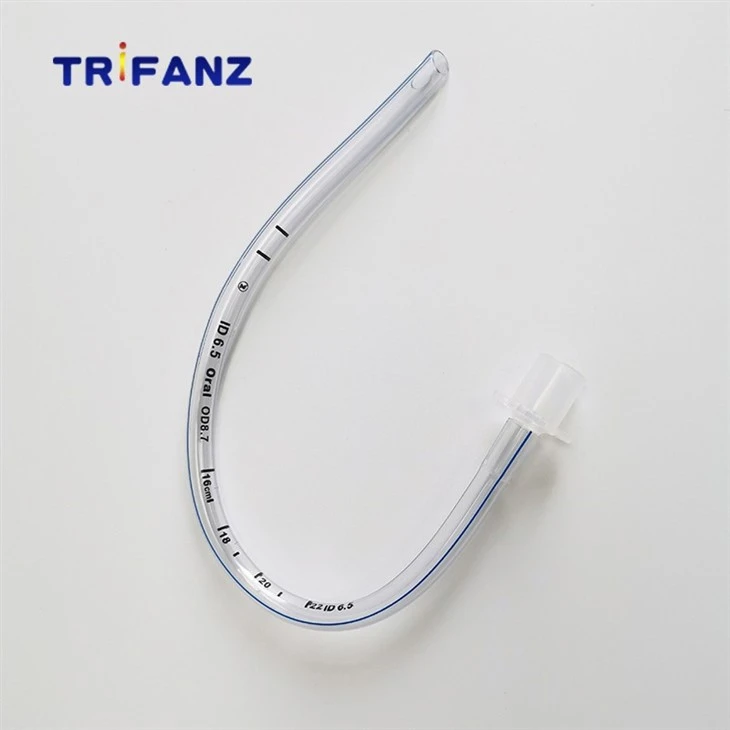

The RAE Tracheal Tube features a preformed curved design, specially engineered for surgical airway management.

This RAE Tracheal Tube avoids tube kinking and keeps the connector off the operative area.

Made of medical-grade PVC, the RAE Tracheal Tube is soft, atraumatic and EO sterilized for single use.

Available in cuffed and uncuffed types, the RAE Tracheal Tube fits pediatric and adult clinical use.



Specifications



RAE Tracheal Tube Technical Parameters

Material: Medical grade transparent PVC, non-toxic and flexible

Type: Oral RAE / Nasal RAE, cuffed and uncuffed optional

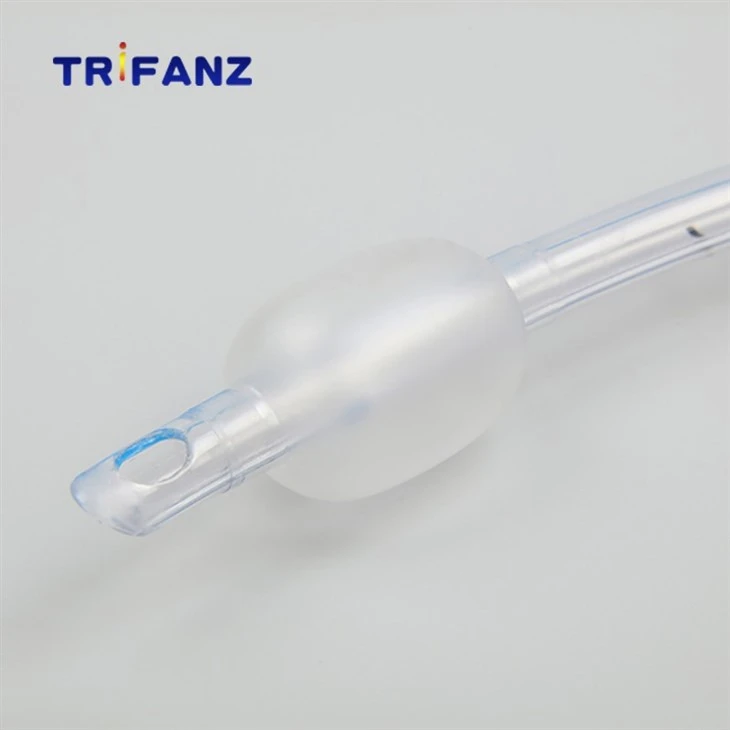

Cuff: High-volume low-pressure cuff, gentle on airway mucosa

Radiopaque line: Built-in X-ray opaque marker for precise localization

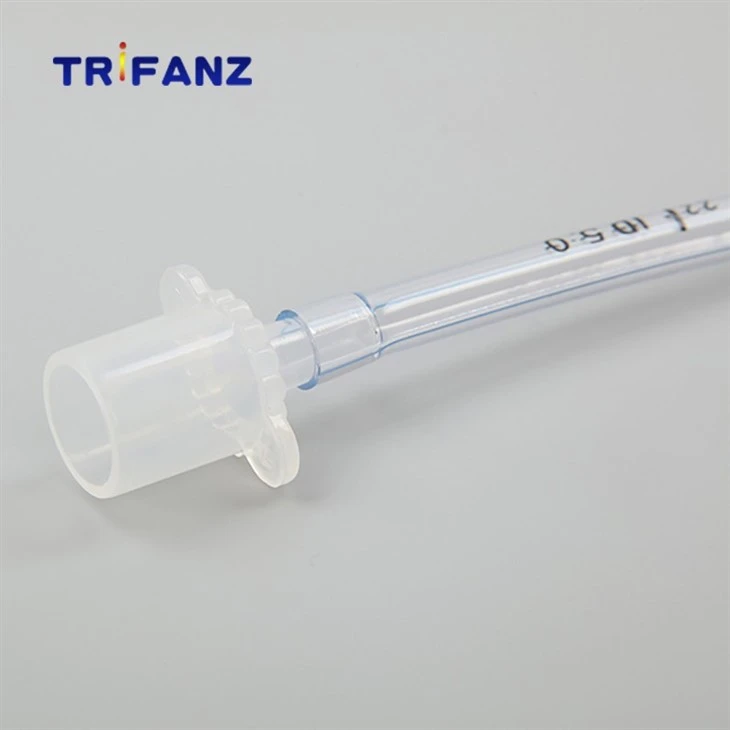

Standard connector: 15mm ISO standard universal fitting

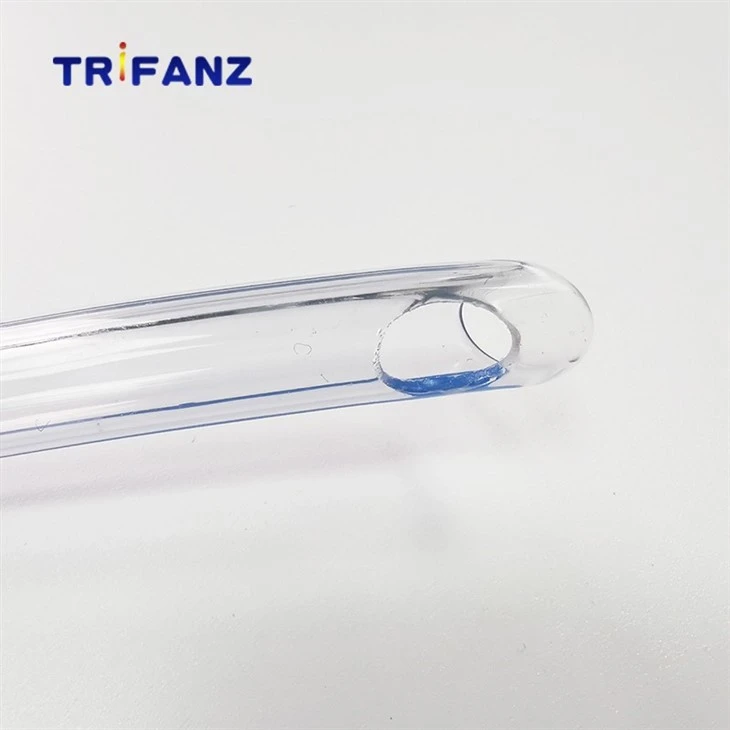

Bevel tip & Murphy eye: Reduce intubation injury and prevent blockage

Sterilization: EO sterilized, single use only

Size range: Complete specifications for pediatric to adult



Oral RAE Tracheal Tube

ID.SIZE

REF NO.

ID.SIZE

REF NO.

ID.SIZE

REF NO.

2.0#

98.04.446

5.0#

98.04.462

8.0#

98.04.486

2.5#

98.04.448

5.5#

98.04.466

8.5#

98.04.490

3.0#

98.04.450

6.0#

98.04.470

9.0#

98.04.494

3.5#

98.04.452

6.5#

98.04.474

9.5#

98.04.496

4.0#

98.04.454

7.0#

98.04.478

10.0#

98.04.498

4.5#

98.04.458

7.5#

98.04.482

-

-

Product Detail

Airway Tube

Application: Clinical anesthesia, resuscitation & airway management

Market: Global (Europe, Americas, Asia, Africa, Middle East)

Original: Zhejiang,China

Packing: Export standard

Certification: CE MDR,ISO13485, US FDA,CFDA,FSC,SGS,COA etc.

Delivery Date: Negotiable

Price: Negotiable

Warranty: 3 year

Material: Medical-grade silicone

MOQ: Negotiable

Payment term: TT, LC

Features



1,The RAE Tracheal Tube adopts a preformed anatomical bend design to perfectly fit orofacial and nasal anatomy.

2,The RAE Tracheal Tube effectively prevents tube kinking, bending and airway obstruction during surgery.

3,Made of medical-grade soft PVC, the RAE Tracheal Tube reduces airway irritation and intubation trauma.

4,Equipped with high-volume low-pressure cuff and Murphy eye, the RAE Tracheal Tube ensures safe ventilation.

5,With a standard 15mm connector and radiopaque line, the RAE Tracheal Tube enables stable connection and accurate positioning.

6,The RAE Tracheal Tube separates the breathing circuit from the surgical area, optimizing the operating field for head and neck procedures.



Oral RAE Endotracheal Tube



Brand Quality Service



Product Customization
We provide tailor-made solutions for high-quality RAE Tracheal Tube to meet diverse clinical needs.

Accessory Supply
Both standard and custom accessories for RAE Tracheal Tube are available with fast, reliable delivery.
Technical & After-sales
Round-the-clock online technical guidance and dedicated after-sales services are provided for your orders.
Flexible Customization
We offer flexible minimum order quantities and customized packaging services for RAE Tracheal Tube.

quality assurance

01/

Cross-departmental contract review ensures every RAE Tracheal Tube order is feasible for production.

02/

Standardized SOPs, a well-trained production team, and advanced testing equipment guarantee consistent quality for RAE Tracheal Tube.

03/

All quality inspectors hold international medical device inspection certifications, with regular professional training and assessments.

04/

In-line inspections run through the entire production process of RAE Tracheal Tube, with all inspection records traceable for 3 years.

05/

Strict control over raw and auxiliary materials, all meeting international medical-grade standards, with prior process design and validation for mass production.

06/

100% final inspection is performed on every RAE Tracheal Tube before shipment, with inspection reports provided for all outgoing batches.

Application

One-stop supplier of anesthesia, respiration & ICU consumables



Our company is an integrated science and technology innovation enterprise, mainly engaged in the research, development, production and sales of medical consumables for respiration, anesthesia, and severe diseases.

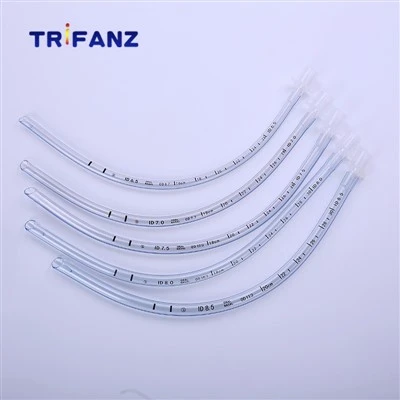

  • Uncuffed Endotracheal Tube

    One-stop

    supplier

    of anesthesia, respiration & ICU consumables

  • HME Filter In Ventilator
    One-stop
    supplier
    of anesthesia, respiration & ICU consumables
  • PVC Resuscitator

    One-stop

    supplier

    of anesthesia, respiration & ICU consumables

  • Adult Nebuliser Mask

    One-stop

    supplier

    of anesthesia, respiration & ICU consumables

About us

Hangzhou Trifanz Medical Device Co., Ltd.





 Headquartered in Hangzhou, China, with convenient access to major international ports, we are a government-supported high-tech enterprise specializing in the development and manufacturing of anesthesia and respiratory medical consumables. Our production facility is equipped with GMP-compliant clean workshops, and our quality management system is certified to ISO 13485 standards and registered with the CFDA, ensuring every product meets strict regulatory requirements. With over two decades of continuous R&D and manufacturing experience, we have built a comprehensive product portfolio covering more than 100 core items, and we provide flexible OEM and ODM services to support clients worldwide.

When it comes to quality control, our commitment is uncompromising. Every RAE Tracheal Tube we produce goes through a series of strict in-line checks throughout the manufacturing process, followed by a full 100% final inspection before leaving the factory. Each outgoing batch is accompanied by detailed inspection records and quality reports, enabling complete traceability and ensuring full compliance with both international and domestic medical standards.





20

+

Years of experience

100

%

AFTER-SALES EXPERTISE

100%

ON-TIME DELIVERY SPEED

100%

CUSTOMER POSITIVE FEEDBACK





banner1

2024 Edition Medical New Delhi.jpg
2024 Singapore Medical Fair Asia.jpg
2024 Turkey Expomed Eurasia.jpg
2024 Malaysia CMEF.jpg
2025 Malaysia CMEF.jpg
2025 Hospitalar in Sao Paulo.jpg
2025 Shanghai CMEF.jpg

banner2

Packaging & Delivery



Packaging

Sterile individual packaging, standard export carton for safe delivery


Delivery

Various shipping methods available for your selection:

Shipping Method Applicable Weight Range Advantage Disadvantage
By Express 1kg - 50kg Fast delivery (7-10 days), door-to-door service Slightly higher cost
By Air 50kg - 500kg Fast delivery (8-12 days), more economical than express Self-pickup at destination airport
By Sea 500kg or more Most cost-effective, far cheaper than express/air Longer transit time, self-pickup at destination port

product-758-60

Frequently Asked Questions



Can you also supply accessories for RAE Tracheal Tubes?

+

-

Yes. We offer a full range of matching accessories, including Luer caps, connectors, and other related components, with timely delivery for both standard and custom orders.

Do you offer after-sales support for RAE Tracheal Tube orders?

+

-

Yes. We provide 24/7 online technical consultation and after-sales support, along with complete inspection reports and traceability records for every batch.

What materials are your RAE Tracheal Tubes made of?

+

-

They are made of medical-grade, biocompatible transparent PVC, which is soft, flexible, and atraumatic to reduce airway irritation during intubation and use.

Do you provide customization for RAE Tracheal Tubes?



-

Yes. We offer customized solutions including OEM/ODM services, personalized packaging, and flexible MOQ options to meet different market and customer requirements.

Are your RAE Tracheal Tubes single-use and sterile?

+

-

Yes. All our RAE Tracheal Tubes are for single-patient use only, EO sterilized, and individually packaged to ensure hygiene and safety.
