TriFanz Closed Circuit Suction Catheter

TriFanz Closed Circuit Suction Catheter

Adult for 24 h and 72 h Pediatric for 24h Optional parts: catheter mount, smooth gel For endotracheal tube For tracheostomy tube

Product Introduction

YOUTUBE



Closed Circuit Suction Catheter (Closed Circuit Suction)

Closed suction catheter, closed suction set

Closed Suction Catheter 72 Hours Tracheal & Endotracheal – Sterile



Adult: for 24 h and 72 h

Pediatric for 24h

Optional parts: catheter mount, smooth gel

For endotracheal tube

For tracheostomy tube



1. The closed suction catheter is used in critical care settings, especially for ventilator patients. TriFanz closed suction catheter provides safe and easy access for secretion removal from the airway to minimize infection and maximize diffusion of oxygen through the lung.

2. Closed suction systems are available for 24-hour or 72-hour usage depending on patient requirements.

3. Color-coded parts provide fast size recognition

4. Allow for suctioning a patient on a ventilator without loss of PEEP or mean airway pressure

5. Reduce oxygen desaturation by allowing constant patient ventilation.

6. Reduces the potential of infection to reduce exposure to secretions.

7. Maintains a sealed airway to reduce exposure to secretions

8. Eliminates patient "spray back"

9. Provide maximum suction and is designed to reduce trauma.

10.Enhance patient safety by avoiding disconnection from the ventilator during catheter change-out or untangling of lines

11.Decrease accidental extubation or decannulation during moving of the patient.



Specifications

Closed Suction Tube

Size

Type

REF No.

Length for Tracheal Tube

Length for Tracheostomy tube

Remark with connector

6Fr

Adult
72 hours

16.333

540-600mm

300-360mm

Light green

8Fr

16.335

540-600mm

300-360mm

Blue

10Fr

16.337

540-600mm

300-360mm

Black

12Fr

16.339

540-600mm

300-360mm

White

14Fr

16.341

540-600mm

300-360mm

Green

16Fr

16.343

540-600mm

300-360mm

Orange

6Fr

Adult
24 hours

16.313

540-600mm

300-360mm

Light green

8Fr

16.315

540-600mm

300-360mm

Blue

10Fr

16.317

540-600mm

300-360mm

Black

12Fr

16.319

540-600mm

300-360mm

White

14Fr

16.321

540-600mm

300-360mm

Green

16Fr

16.323

540-600mm

300-360mm

Orange

5Fr

Children
24 hours

16.003

305mm

210mm

2.0/2.5/3.0mm

6Fr

16.006

305mm

210mm

2.5/3.0/3.5mm

8Fr

16.009

305mm

210mm

3.5/4.0/4.5mm

10Fr

16.010

405mm

210mm

4.5/5.0/5.5mm

5Fr

Children
72 hours

16.013

305mm

210mm

2.0/2.5/3.0mm

6Fr

16.016

305mm

210mm

2.5/3.0/3.5mm

8Fr

16.018

305mm

210mm

3.5/4.0/4.5mm

10Fr

16.020

405mm

210mm

4.5/5.0/5.5mm

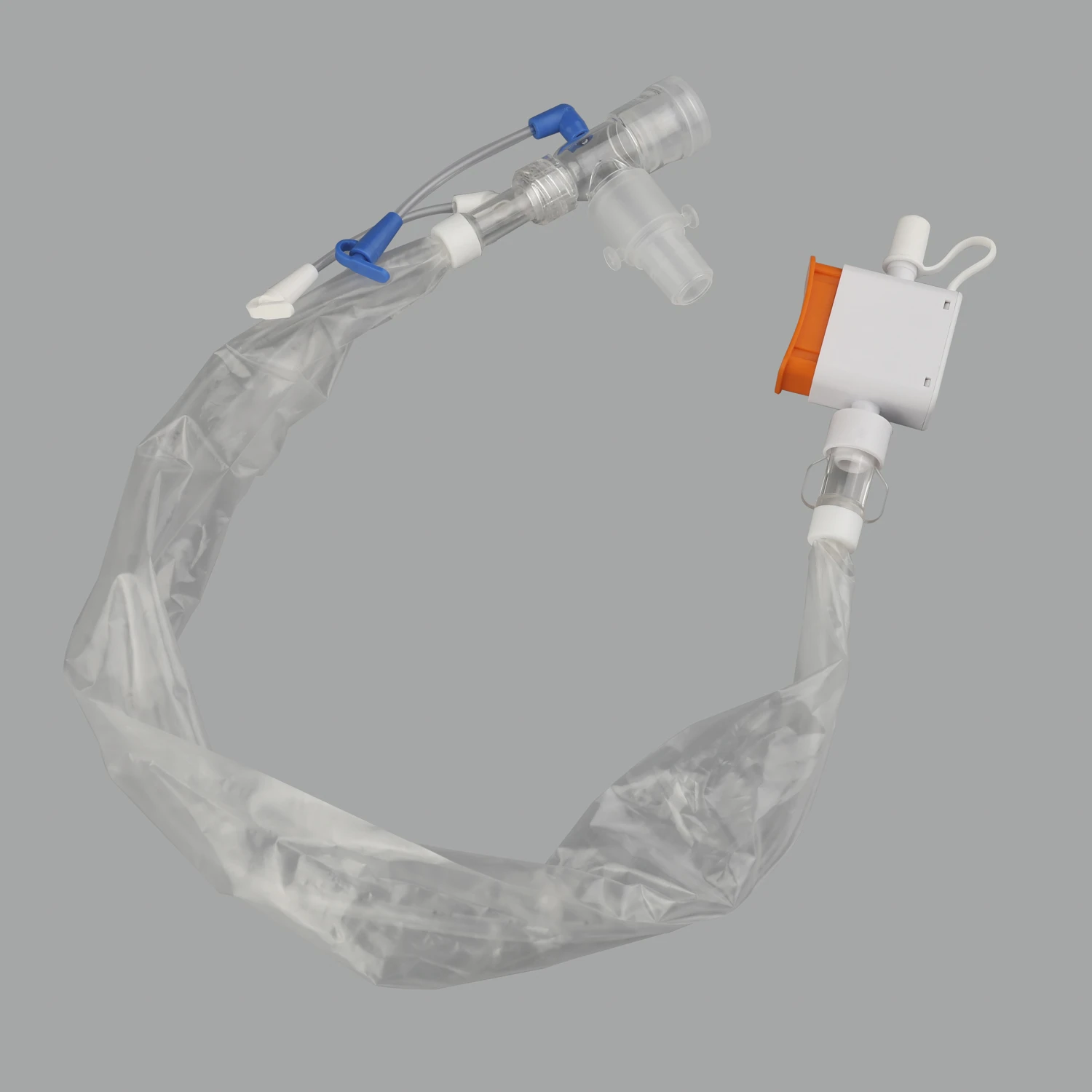

61TriFanz Closed Suction Tube

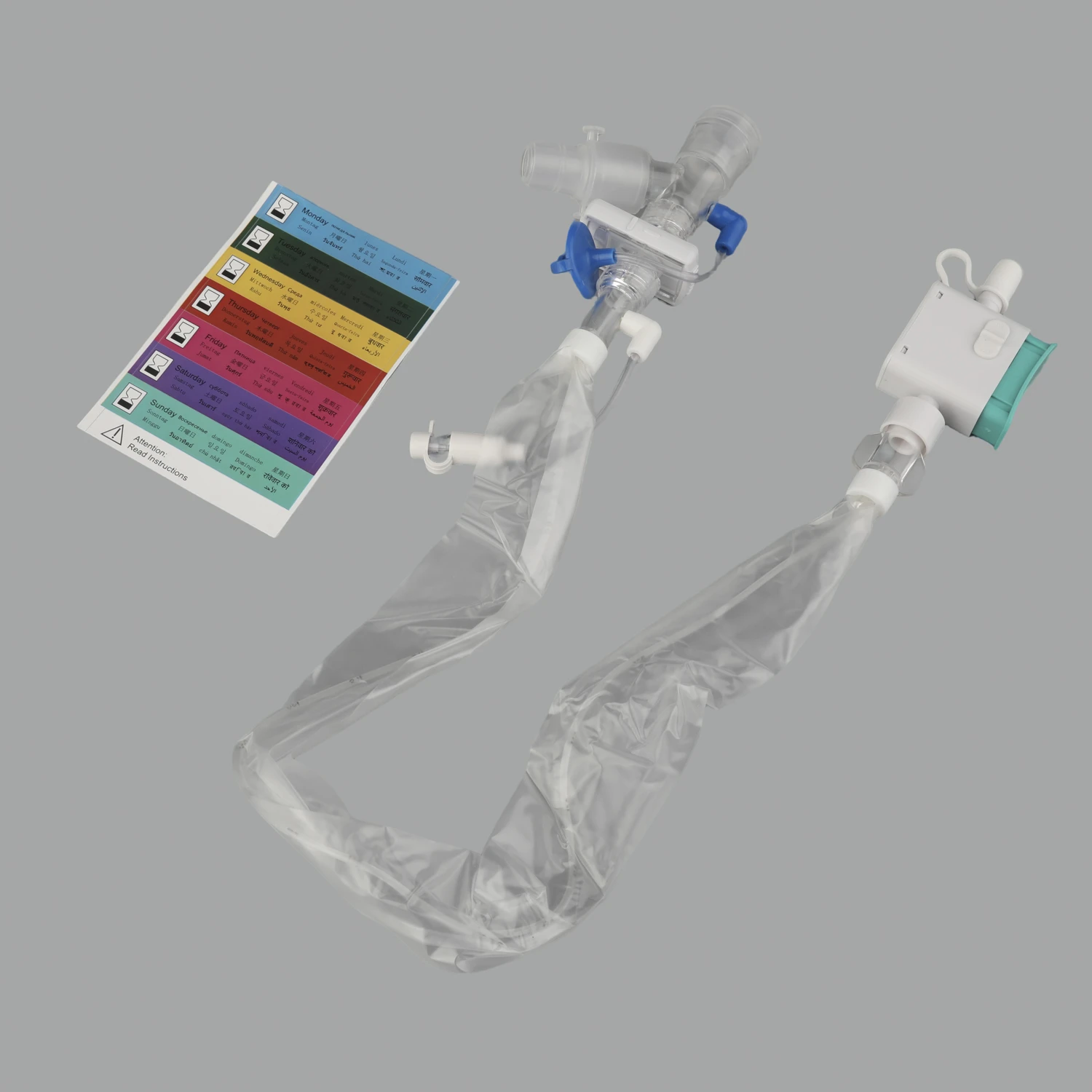

112 TTriFanz Closed Suction Tube



  •





    Closed Suction Tube

    Size

    Type

    REF No.

    Length for Tracheal Tube

    Length for Tracheostomy tube

    Remark with connector

    6Fr

    Adult
    72 hours

    16.333

    540-600mm

    300-360mm

    Light green

    8Fr

    16.335

    540-600mm

    300-360mm

    Blue

    10Fr

    16.337

    540-600mm

    300-360mm

    Black

    12Fr

    16.339

    540-600mm

    300-360mm

    White

    14Fr

    16.341

    540-600mm

    300-360mm

    Green

    16Fr

    16.343

    540-600mm

    300-360mm

    Orange

    6Fr

    Adult
    24 hours

    16.313

    540-600mm

    300-360mm

    Light green

    8Fr

    16.315

    540-600mm

    300-360mm

    Blue

    10Fr

    16.317

    540-600mm

    300-360mm

    Black

    12Fr

    16.319

    540-600mm

    300-360mm

    White

    14Fr

    16.321

    540-600mm

    300-360mm

    Green

    16Fr

    16.323

    540-600mm

    300-360mm

    Orange

    5Fr

    Children
    24 hours

    16.003

    305mm

    210mm

    2.0/2.5/3.0mm

    6Fr

    16.006

    305mm

    210mm

    2.5/3.0/3.5mm

    8Fr

    16.009

    305mm

    210mm

    3.5/4.0/4.5mm

    10Fr

    16.010

    405mm

    210mm

    4.5/5.0/5.5mm

    5Fr

    Children
    72 hours

    16.013

    305mm

    210mm

    2.0/2.5/3.0mm

    6Fr

    16.016

    305mm

    210mm

    2.5/3.0/3.5mm

    8Fr

    16.018

    305mm

    210mm

    3.5/4.0/4.5mm

    10Fr

    16.020

    405mm

    210mm

    4.5/5.0/5.5mm
