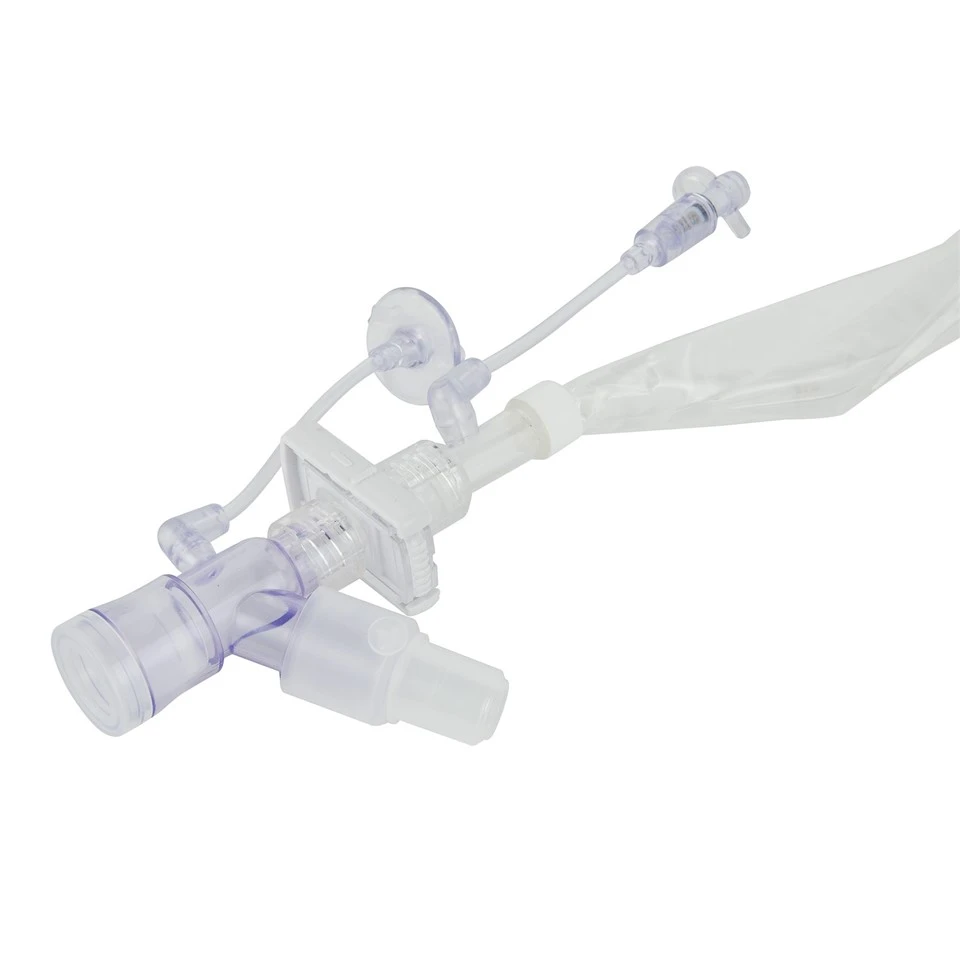

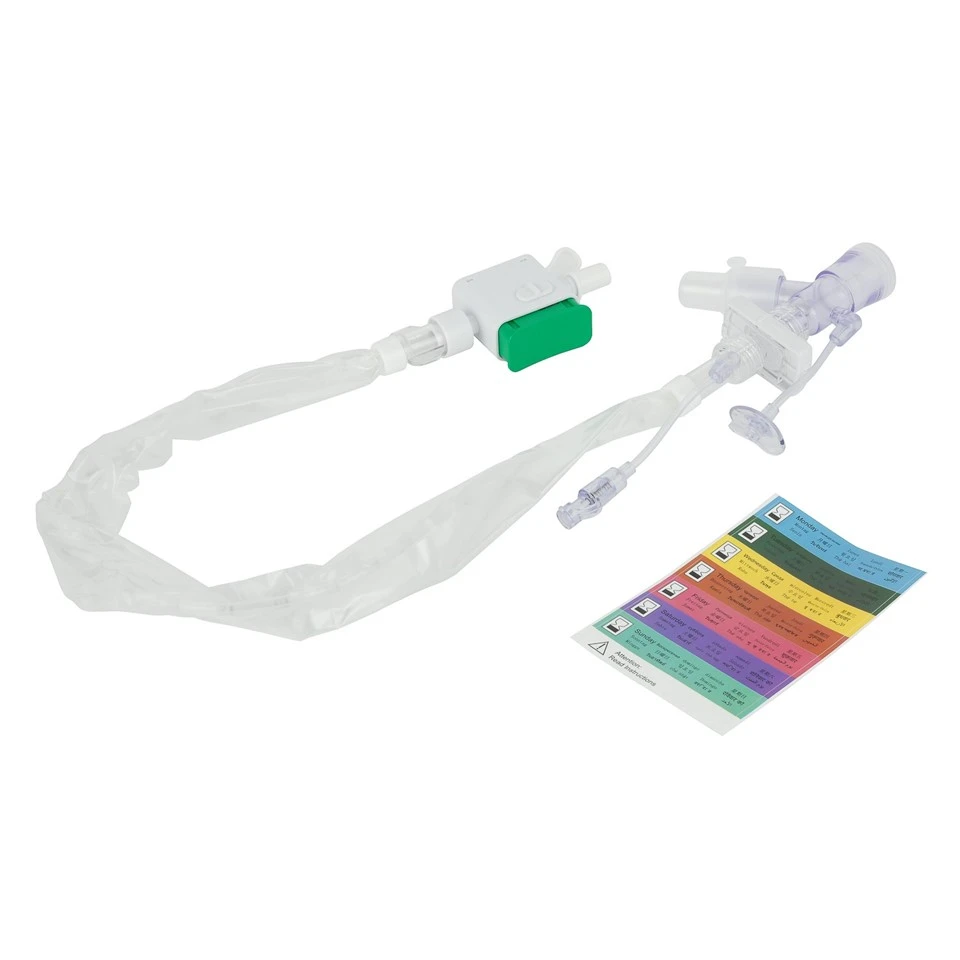

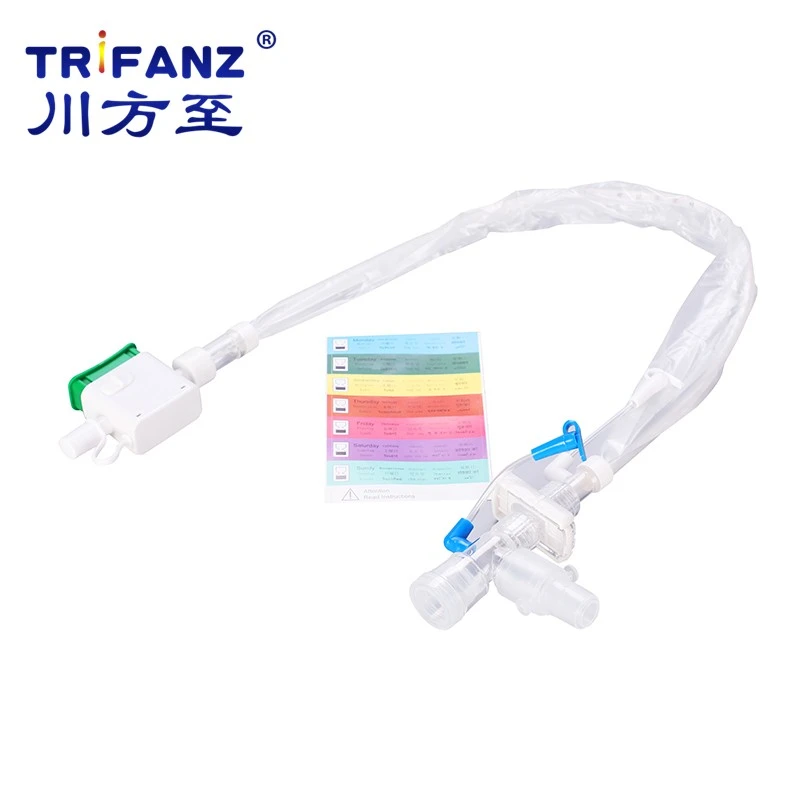

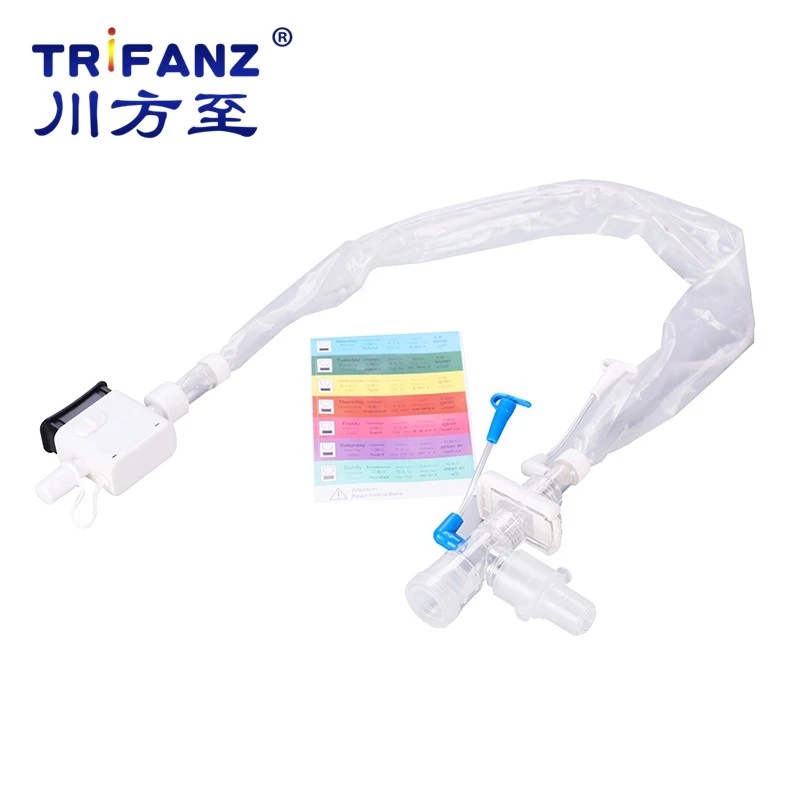

A closed suction catheter for tracheostomy tubes, also known as an inline suction system, is a method of suctioning a patient's airway without disconnecting them from the ventilator. This system uses a catheter enclosed in a sterile, protective sleeve, allowing for repeated suctioning with minimal disruption to ventilation and oxygenation, and reducing the risk of contamination.

Specification

Size	Type	REF No.	Length for Endotracheal Tube	Length for Tracheostomy Tube	Color
6Fr	72 hours	16.333	540mm	305mm	Light Green
8Fr		16.335	540mm	305mm	Blue
10Fr		16.337	540mm	305mm	Black
12Fr		16.339	540mm	305mm	White
14Fr		16.341	540mm	305mm	Green
16Fr		16.343	540mm	305mm	Orange

Application

Patients with respiratory system diseases, those undergoing general anesthesia surgery, and those in emergency rescue situations who require tracheal intubation (or tracheotomy intubation) and artificial ventilator support treatment, and who need to be treated without separating from the ventilator and without interrupting mechanical ventilation.

Benefit of Trifanz's clsoed suction system:

1.Medical-grade PVC(DEHP or DEHP free available)
2. With 2 irrigation ports
3.With transparent protective sleeves to maintain sterility of the suction catheter
4.Catheter tip is smoothly designed to cause less trauma to mucous membranes

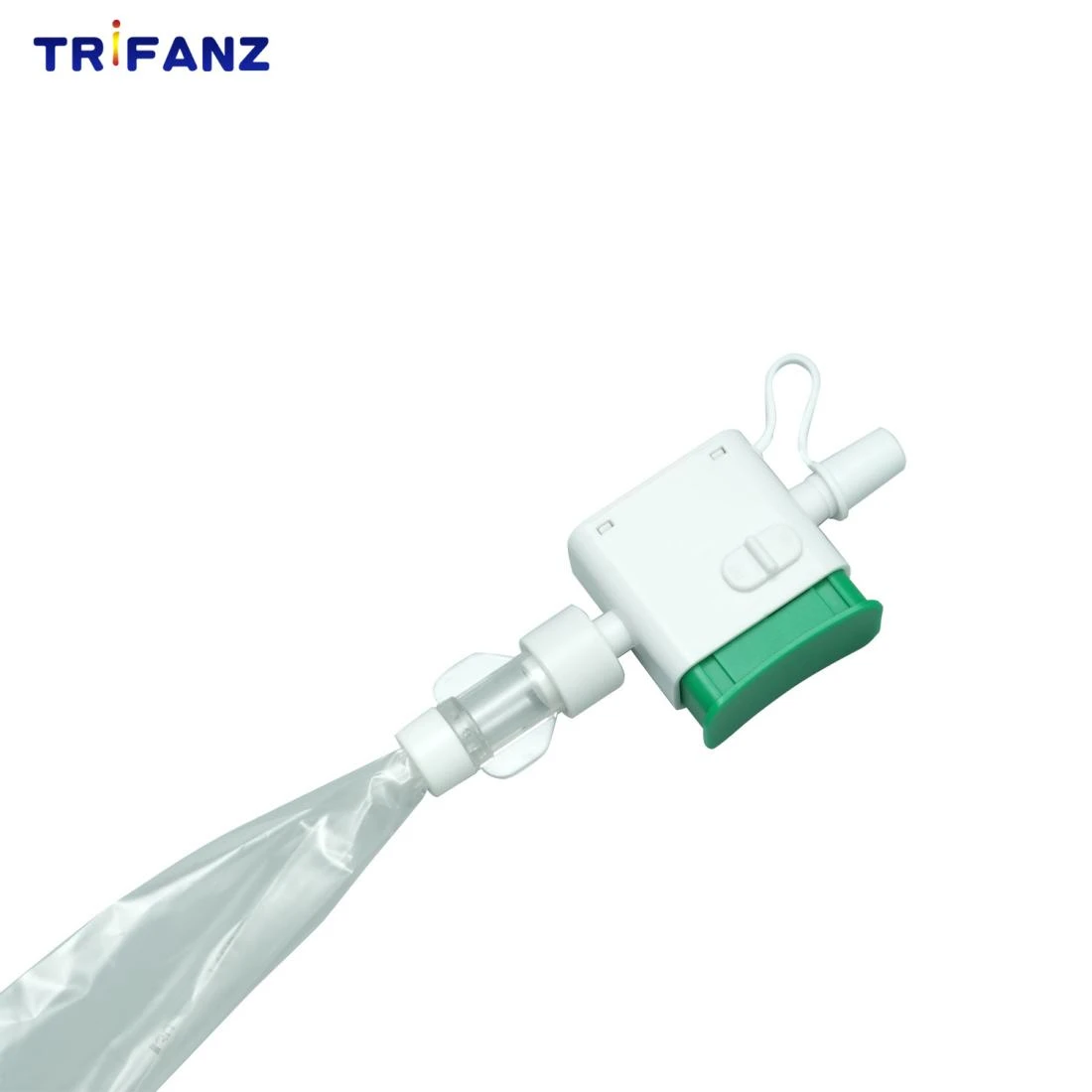

5. With safety control switch, could be handled by one hand

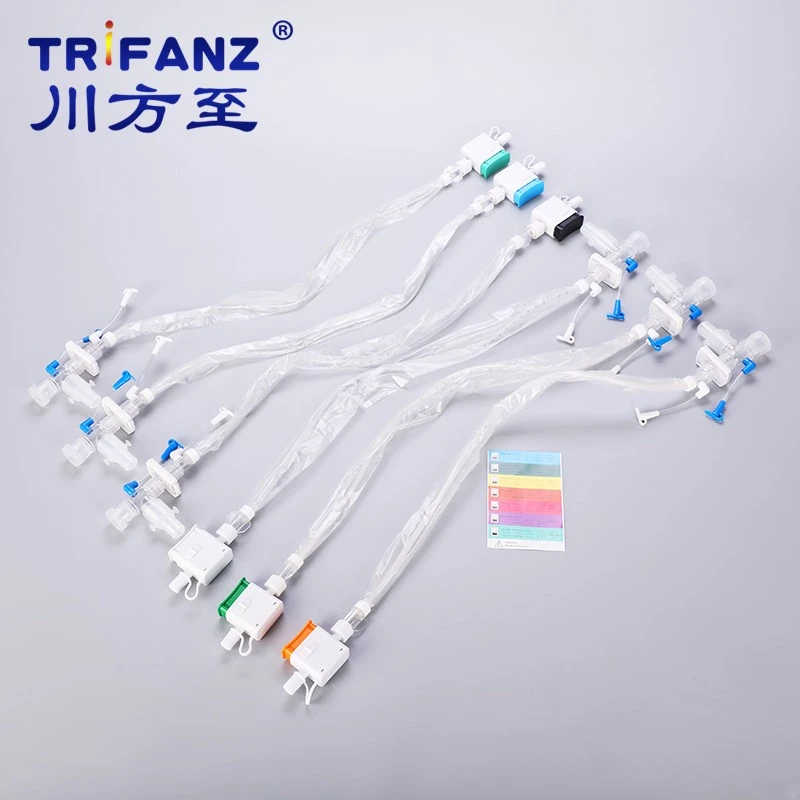

6.Color coding suction control valve for identification of catheter size

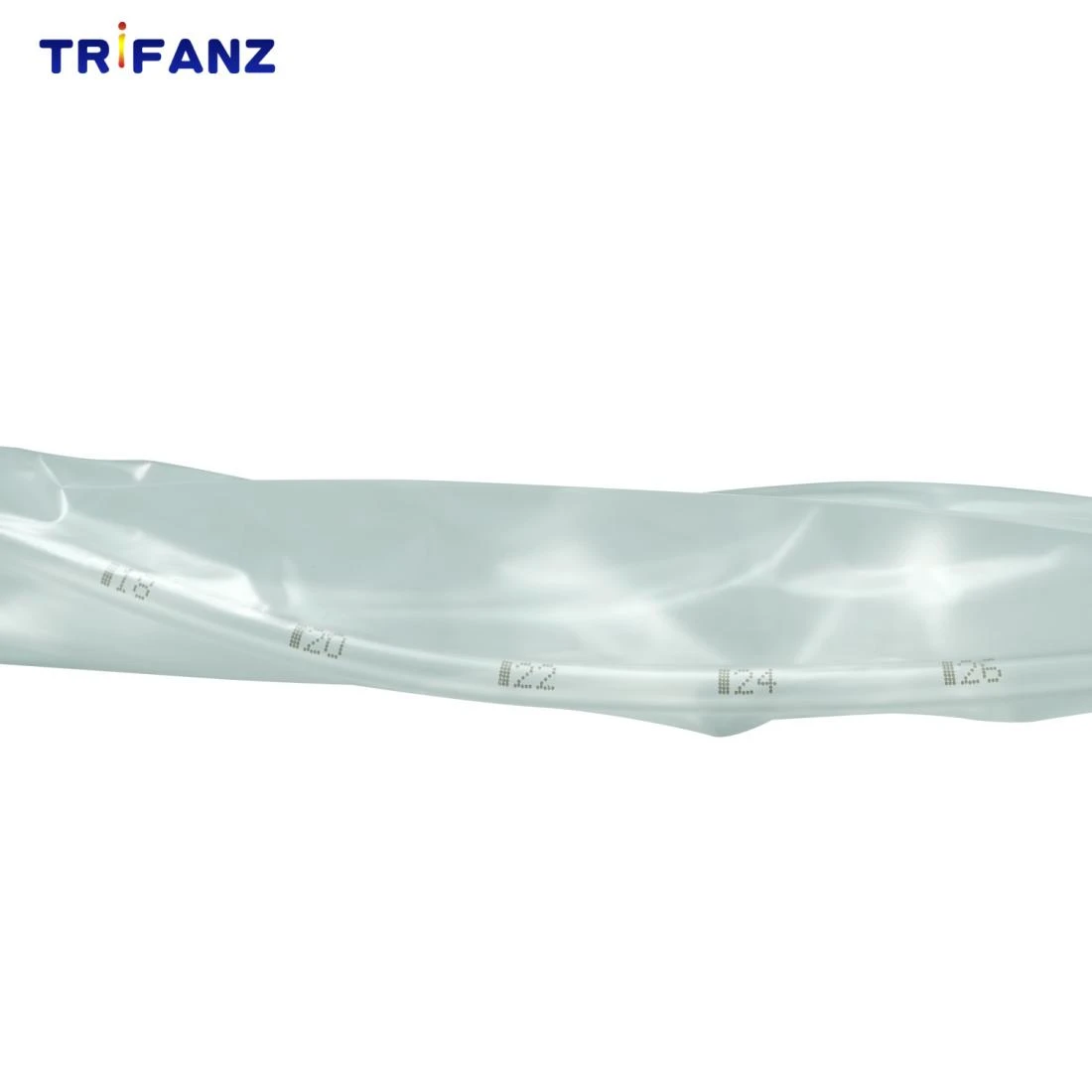

7.Suction catheter with markings of insertion length and transparent allow viewing of the secretion during suction

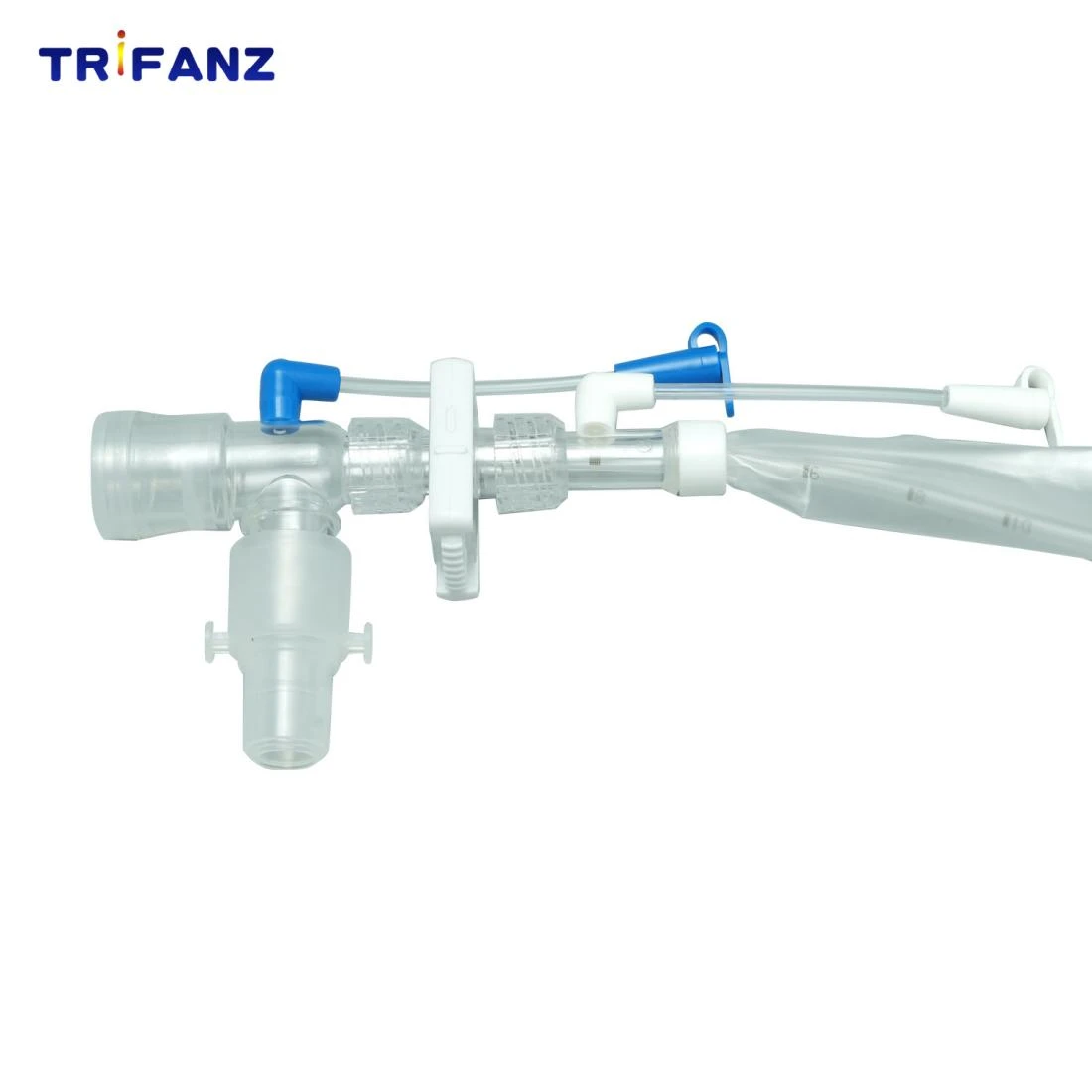

8.The swivel adaptors is 360 degree free for roration for connecting breathing circuit, endotracheal tube and tracheostomy tubes.

9.Transparent swivel 15mm adaptor

10.Optional parts: expandable tube

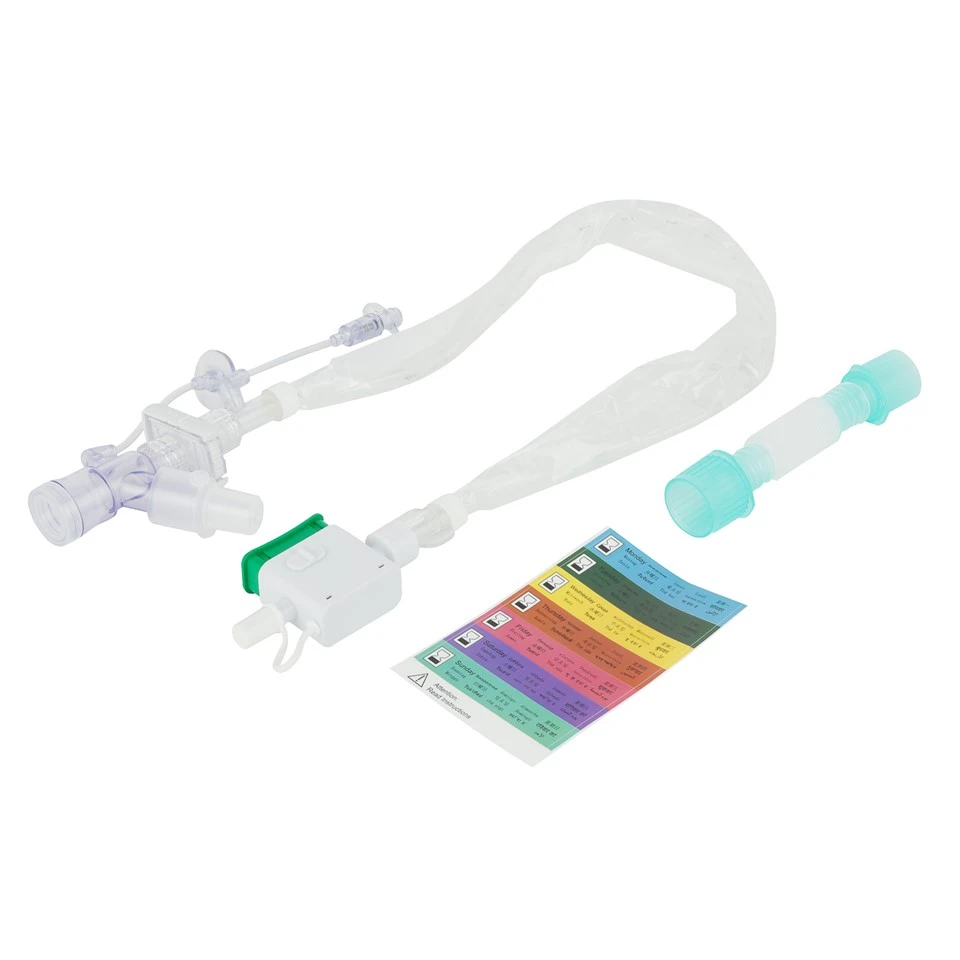

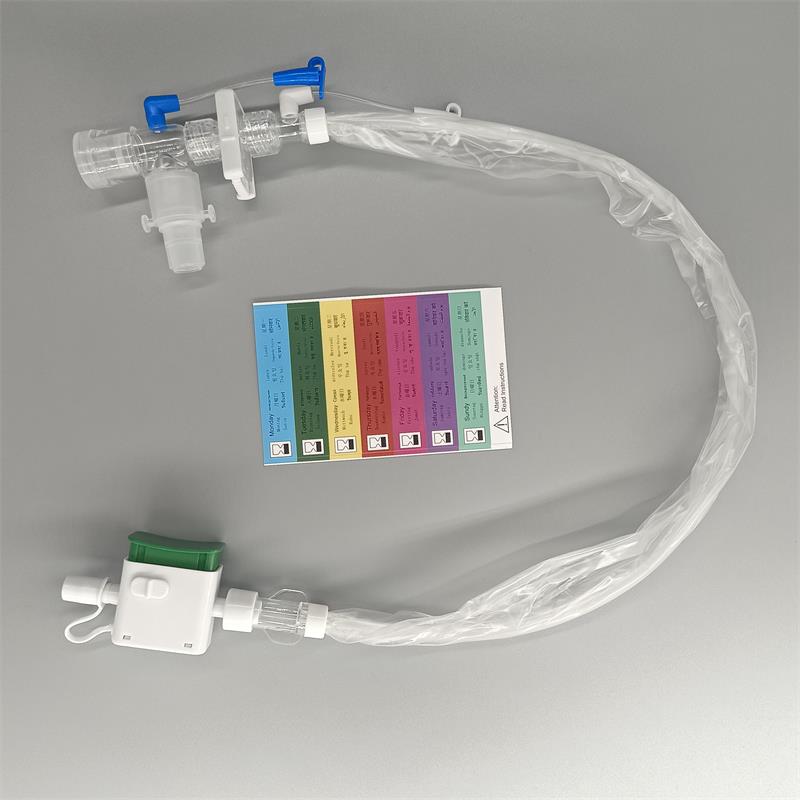

11.With label for next change date

Advantage of closed suction catheter for tracheostomy comparing to open suction catheter

No need to disconnect the ventilator, ensuring positive end-expiratory pressure and oxygen supply

Reduces the spread of aerosols, lowering the risk of nosocomial and cross-infections

Avoids the risk of infection for medical staff from exposure to droplets and secretions.

fAQ

Q: What is the difference between closed and open suctioning?

A: Tracheal secretions in mechanically ventilated patients are removed using a catheter via the endotracheal tube. The suction catheter can be introduced by disconnecting the patient from the ventilator (open suction system) or by introducing the catheter into the ventilatory circuit (closed suction system).

Q: What is the maximum duration of a closed suction system?

A: Trifanz's closed suction systems are available for 24 hour or 72 hours usage depending on patient requirements. There are two length options to allow attachment to either endotracheal or tracheostomy tubes.

Q: What is the safe suction time?

A: Don't suction for more than 10 seconds each time.
